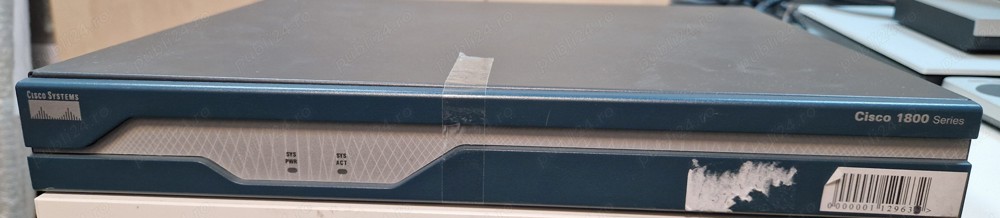

Router Cisco 1800 Series

GENERAL

Authentication Method Secure Shell v.2 (SSH2)
Authentication Method Secure Shell v.2 (SSH2)
Encryption Algorithm DES, Triple DES, AES
Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP

MODEM

Type DSL modem
Digital Signaling Protocol SHDSL

POWER DEVICE

Power Provided 50 Watt
Nominal Voltage AC 120 230 V
Frequency Required 50 60 Hz
Type internal power supply

NETWORKING

Form Factor desktop
Type Router
Connectivity Technology wired
Data Link Protocol Ethernet, Fast Ethernet
Network Transport Protocol IPSec
Features DiffServ support, Dynamic Multipoint VPN (DMVPN), load balancing, Intrusion Prevention System (IPS), Network Admissions Control (NAC), Quality of Service (QoS), Stateful Packet Inspection (SPI), URL filtering, VLAN support, VPN support, firewall protection
Compliant Standards IEEE 802.1Q, IEEE 802.1x
Routing Protocol BGP, EIGRP, OSPF, RIP-1, RIP-2
Switching Protocol Ethernet
Remote Management Protocol HTTP, SNMP

COMMUNICATIONS

Digital Signaling Protocol SHDSL
MISCELLANEOUS
Rack Mounting Kit optional
Encryption Algorithm AES, DES, Triple DES
Height (Rack Units) 1 m
Refurbished refurbished
INTERFACE PROVIDED
Type management, modem, network
Interface Ethernet 10Base-T 100Base-TX, ISDN BRI ST, SHDSL, auxiliary, console
Qty 1, 8
Connector Type RJ-45
WAN DMZ WAN
RAM
Max Supported Size 384 MB

Technology SDRAM

FLASH MEMORY
Max Supported Size 128 MB

SOFTWARE SYSTEM REQUIREMENTS

Type Cisco IOS Advanced IP services

HEADER

Brand Cisco
Product Line Cisco
Model 1803

DIMENSIONS & WEIGHT

Width 12.8 in
Depth 9.7 in
Height 1.8 in
Weight 6.17 lbs

EXPANSION SLOTS

Type memory
Total Qty 1
Free Qty 0

PERFORMANCE

Type VPN throughput (3DES IPSec)
Value 40 Mbps
