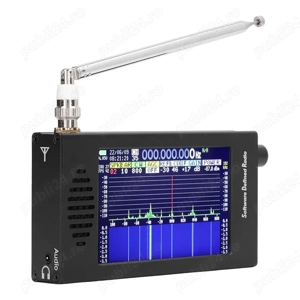

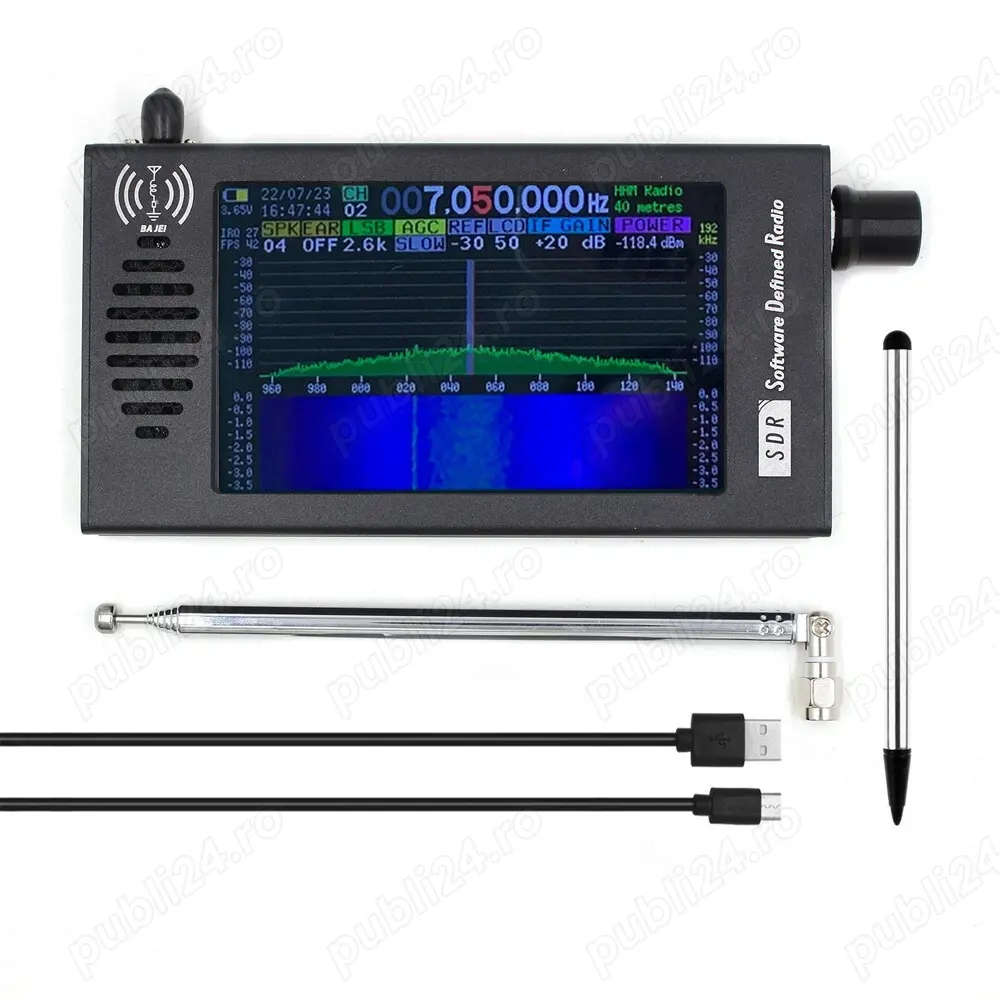

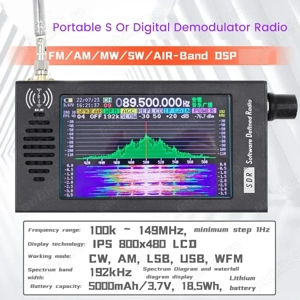

Software Defined Radio SDR Radio Receiver 100K-149MHz

Radioul digital SDR 101 este un receptor radio digital portabil definit prin software care acoperă gama de frecvență de la 100 kHz la 149 MHz, acceptând diferite moduri de modulație precum AM, SSB, CW și FM, carcasa din aliaj de aluminiu. Dispune de un ecran tactil IPS-LCD de 4,3 inci 800x600 rezolutie și un codificator rotativ pentru control, cu un afișaj în cascadă și spectru care oferă feedback vizual.
Basic parameters:
Display technology: 4.3-inch IPS 800x480 resolution DC dimming bright LCD
Control method resistive touch screen + rotary encoder
Frequency range 100k 149MHz
Working mode CW, AM, SSB single sideband (LSB USB), WFM, FM broadcast stereo (requires earphones)
Step frequency 1Hz 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 10MHz
Spectral bandwidth 192kHz, 128kHz, 64kHz, FFT real-time spectrum display
Antenna interface BNC male, impedance 50 , maximum input power -20dBm
Reference crystal TCXO 26MHz 0.5ppm
Audio interface support ordinary 3.5mm earphone or CTIA (American Standard) interface earphone
Speaker power maximum 3W, 4 multimedia speaker
Charging port USB Type-C, 5.0V 2A
Current consumption about 250mA @ 5V
Battery capacity 5000mAh 3.7V, 18.5Wh
Use time About 10-12 hours, depending on the volume and brightness settings of the machine
Channel saving 99 channels can be preset, preset radio station name, station frequency and demodulation mode
Body size 136 x 74 x 22mm (L x W x H) (without protrusions)
Body weight about 310g
