SIM 800L Quad-bands 1900 MHz GSM GPRS arduino + Antena

SIM 800L Quad-bands 1900 MHz GSM



Acest modul Nu are 3G deci nu merge RDS-DIGI
Daca vreti GSM cu 3G - RDS - DIGI, vezi (click) la anunturile utilizatorului



ATENTIE!

Conf. datasheet tensiunea maxima de lucru este de 4.2V dar si 5V pe ceilalti pini dar comunicatia Seriala (RX,TX) este pe 3.3V

Daca acest modul se conecteaza la Arduino ... cat si la alte dispozitive ce tensiunea nivelului logic este mai mare de 3.3V mai precis 5V este necesar acest convertor

Am si asa ceva si costa 10 lei

Daca nu se respecta interconectarea corecta privind nivelele de tensiuni logice NU OFER GARANTIE

Un efect de exemplu, daca conectam un modul ce are comunicatie de 3.3V la Arduino UNO ce are nivelul logic de 5V, RX (I2C dupa caz) din modulul de 3.3V se va arde si devine scurt fata de GND !!!

In acest caz modulul devine inutilizabil.



Frecventa: quad-band network1900MHz

Sim 800L - BLUE model:

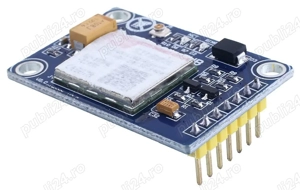

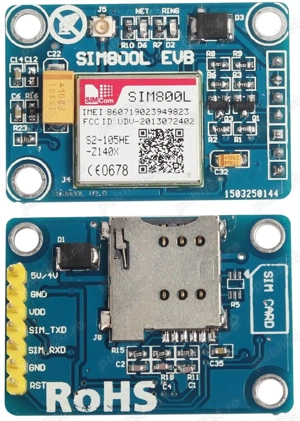

This SIM800L module has a set of TTL level serial interface, a set of power supply interface. Besides, there are a set of antenna interface on this module.
The chip of SIM800L basic features
SIM800L is a complete Quad-band GSM GPRS solution in a LGA type which can be embedded in the customer
Applications:
With tiny size ofmm, it can fit into slim and compact demands of customer design
General features
Quad-band1900MHz
GPRS multi-slot classGPRS mobile station class B
Compliant to GSM phase 2 2+
Class 4 (2 W - 850 900MHz)
Class 1 (1 W - 1800 1900MHz)
Dimensions4mm
Weight: 1.35g
Control via AT commands (3GPP TSAnd SIMCOM enhanced AT Commands)
Supply voltage range 3.4 4.4V
Low power consumption
Operation temperature:-40C 85C
Specifications for GPRS Data
GPRS class 12: Max. 85.6 kbps (downlink uplink)
PBCCH support
Coding schemes CSPPP-stack (5a5i0 al3x r3d)
CSD up to 14.4 kbps

- - - - - - - - - - - - - - - - - - - - - - - - -
