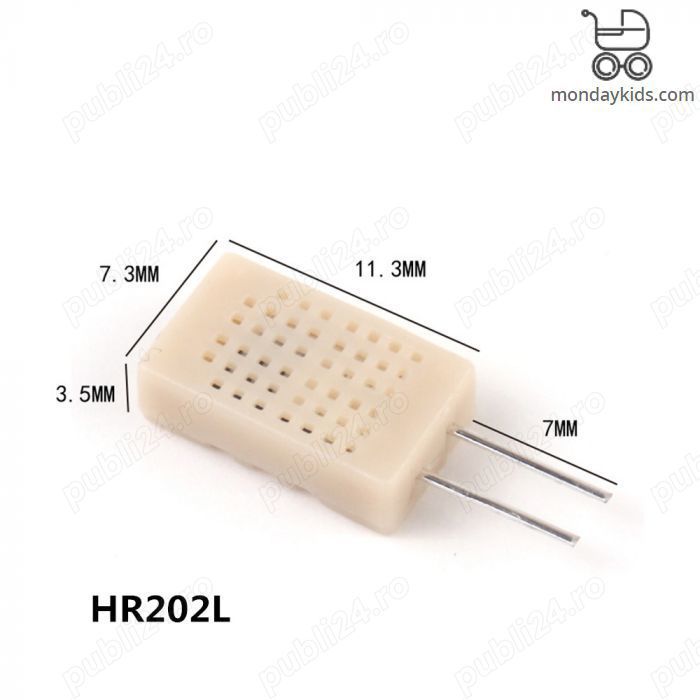

Senzor HR202L umiditate aer



Specifications:

HR202 humidity resistance is the use of organic polymer materials of a new humidity sensor,
humidity sensing range, stable performance, long-term use, can be applied
to warehousing, cars,indoor air quality control,
building automation, medical, industrial control systems and wide range of
applications such as scientific research.
Parameters: (at 1kHz) Unit: OhmOperating range: 20 ... 95% RH 0 ... 60
Supply voltage: 1.5V AC (Max sine wave)
Operating frequency: 500Hz ... 2kHz
Rated Power 0.2mW: (Max sine wave)
value: (at25 1kHz 1V AC 60% RH sine wave) 31.0k
Impedance range: (at25 1kHz 1V AC 60% RH sine wave) 19.8 ... 50.2k
Humidity measuring accuracy: 5% RH (5en50r t3rm1 al3x in5ta r3d)

- - - - - - - - - - - - - - - - - - - - - - - - -

Livrare in Bucuresti si in tara:
