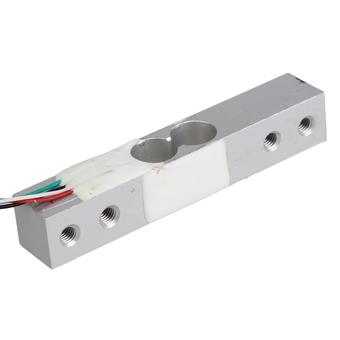

Senzor greutate 5kg YZC-131



Nota:
Necesita si convertorul ADC HX711 (pe care il am daca va intereseaza)

Description
Feature:
The full-bridge structure, the four leads, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Wiring: red voltage + E, black line voltage -E, green line signals + S, the white line signal -S
The sensor is fixed at one end through the screw hole, and the other end left floating state, applied according to label directions direction of gravity. In particular, note that you must not directly push the white plastic cover part, in order to avoid damage of the sensorSpecification:
Model: YZC-131A
Dimensions: 75x12.7x8mm/2.95 x 0.51 x 0.31"(L x W x H)
Range: 5 kg
Rated Load: 2 kg
Rated output1mV / V
NonlinearF.S
Hysteresis: 0.0% F.S
Repeatability: 0.05% F.S
Creep (5 minutes): 0.05% F.S
Temperature Effect on Output: 0.003% F.S / C
Zero output: 0.2 mV / V
Input impedanceOutput impedanceInsulation resistance: 2000 M
Operating temperature rangeC
Recommended for: kitchen scales
Weight:21g (5en50r al3x) r3d

- - - - - - - - - - - - - - - - - - - - - - - - -
