Modul USB Tip-C decoy trigger tensiune setabila fixa 9V 12V 15V 20

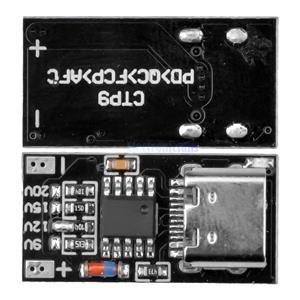

Modul USB decoy tensiune setabila fixa 9V 12V 15V 20 din charger fast charging, prin jumper pe pcb (vezi poza)


Demo youtube: https://youtu.be/zfOMJtclaS8


Type-C Fast Charge Decoy Trigger 9V 12V 15V 20V PD2.0 PD3.0 QC2.0 QC3.0 Fast Charge Detector USB Booster Power Supply Board
Features:
1: Support a variety of fast charging protocols
2: Wide range of applications
3: Small size
4: Maximum support 5A
5: TYPE-C port power supply

1. Support a variety of fast charging protocols:
PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC
2. Function/function of this product:
1. Trick out the voltage of the fast charging charger/charging treasure and use it as a DC power supply. For example, let the fast charging power bank output 9 volts,
12 volts to power routers, light cats, etc.!
2. Turn some traditional DC-powered devices into TYPE-C port power supply.

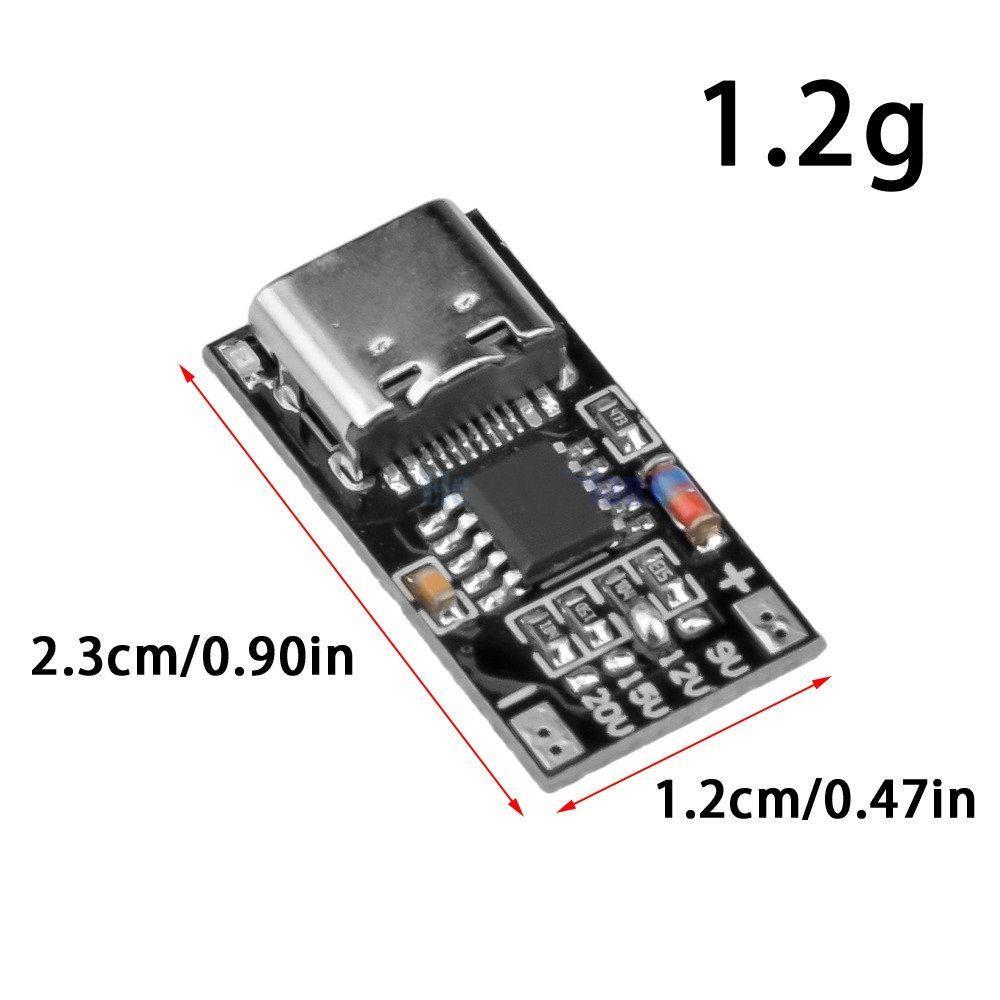

3. The size of the decoy board: 23*11.5*4mm
Fourth, remind you:
1. Mobile phone chargers/charging treasures must first support fast charging such as PD/QC in order to deceive the fast charging voltage.
2. Fix the four gears of 9/12/15/20 volts, what voltage is needed, just short the corresponding pads.
3. For example, if you set the decoy to 20 volts, but your charger is only up to 9 volts, it will automatically downshift to deceive the output to 9 volts.
4. The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.

5y5sa d0w7 al3x c0n l1th1

- - - - - - - - - - - - - - - - - - - - - - - - -
