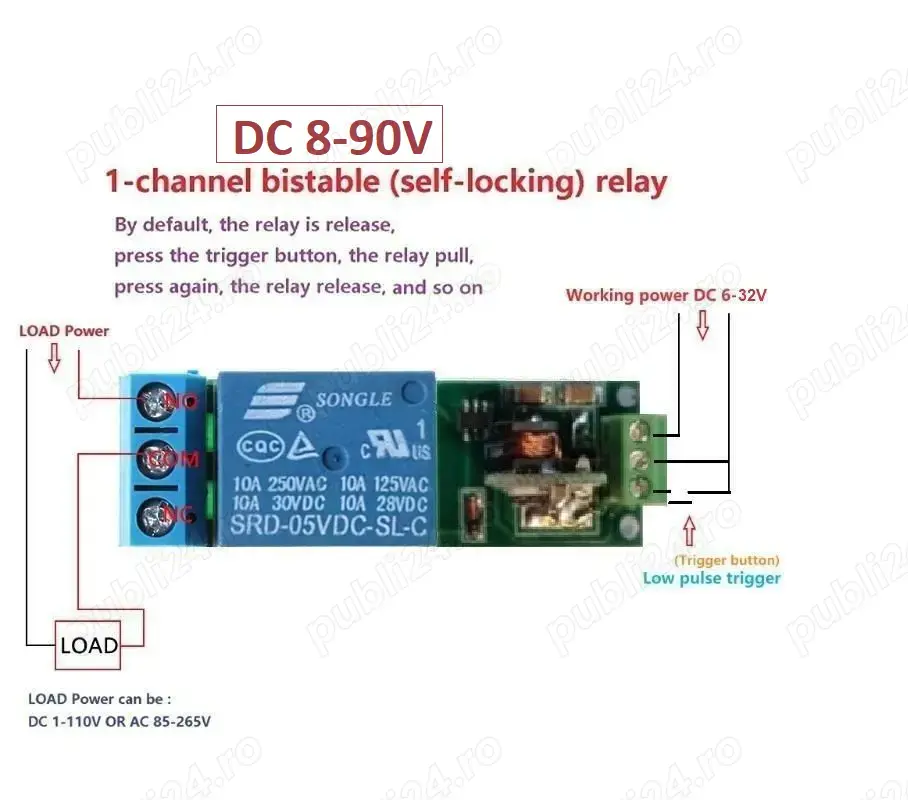

modul releu bistabil 8V-90V latch on-off

Releu 8V-90V - Bistabil cu un canal



Poate fi alimentat cu orice tensiune intre 8V si 90V - DC

(am si releu bistabil ce functioneaza numai la 5V in alt anunt)




Working voltage:DC 8-90V
Working current:03-70mA
Standby current:1UA
Load current :AC 250V 10A,DC 30V 10A
Trigger mode:Low pulse trigger
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

Module interface:
1.VCC: positive power supply (VCC)
2.GND: negative power supply (GND)
3.T: Low pulse trigger
Relay outputs:
1.NO: normally open relay interface
2.COM: Common Interface Relays
3.NC: normally closed relay interface
USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
al3x b0t 5en50r 5e73e un1q latch on off on-off flip flop relee Self locking Low Pulse Trigger Module auto car masina
(8V, 9V, 10V, 12V .. 14V ... 15V ... 16V. 18V ... 19V .. 20V.. 21V, 22V, 23V, 24V, 25V, 28V, 30V, 36V, 42V, 48V, 54V, 56V, 60V, 62V, 64V, 70V, 72V, 82V, 84V, 86V, 90V

- - - - - - - - - - - - - - - - - - - - - - - - -
