modul releu bistabil 5v latch on-off

Modul Releu 5V-DC - Bistabil - cu un canal



(am si releu bistabil ce functioneaza in gama 6V - 24V in alt anunt)



Description:

Working voltage: DC 5V

Working current: 70MA

Standby current: 1UA

Load current: AC 250V / 10A, DC 30V / 10A

Trigger mode: Low pulse trigger

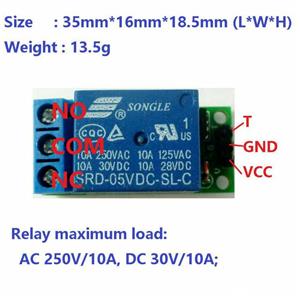

Size: 35mm * 16mm * 18.5mm (L * W * H), Very small size

Weight: 13.5 g


This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

al3x b0t 5en50r 5e73e latch on off on-off flip flop relee Self locking Low Pulse Trigger Module

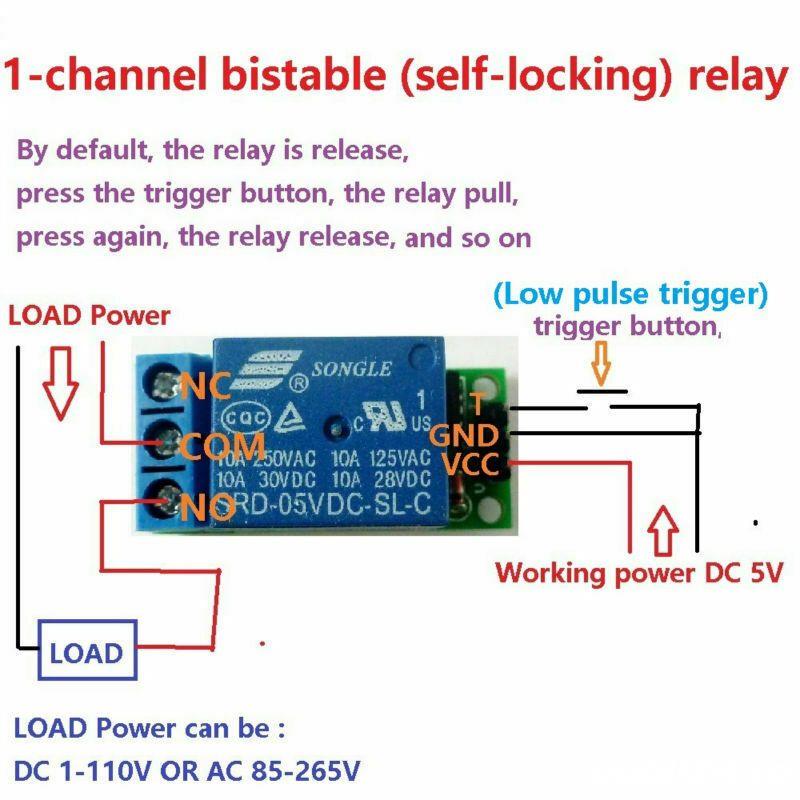

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

- - - - - - - - - - - - - - - - - - - - - - - - -
