Modul cu 4 relee alimentare 12V, contact 10A - AC 220,optocuplor TTL, relee Arduino auto

Modul cu 4 relee alimentare 12V, contact 10A - AC 220



- Semnalul logic aplicat trebuie sa fie tip OPEN COLECTOR (fara pull up din microcontroler) altfel nu functioneaza mai ales cu nivele mici de semnal (datorita modului de constructie optocuplor de pe placa releelor)
- Izolare galvanica prin optocuplor
- Putere Maxima 2.5KW pentru (250AC - 10A)

Nota releul trebuie alimentat la tensiunea de lucru specificata 12V

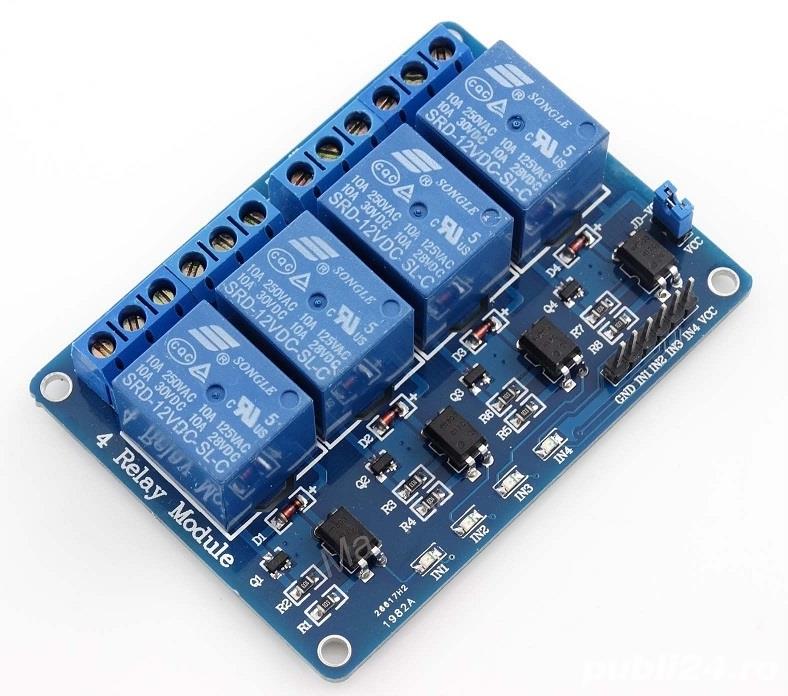

This is a 4-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
4-Channel Relay interface board, and each one needs 15-20mA Driver Current 5e73e al3x r3d
Equipped with high-current relay, AC250V 10A ; DC30V 10A
Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
Indication LED s for Relay output status

- - - - - - - - - - - - - - - - - - - - - - - - -
