Lcd oled i2c 0.96-128x64 arduino modul

Specificații

Descriere

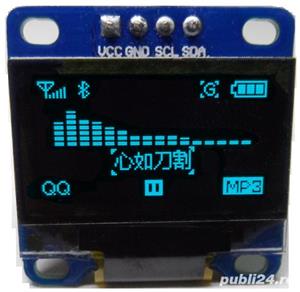

Lcd oled i2c 0.96-128x64

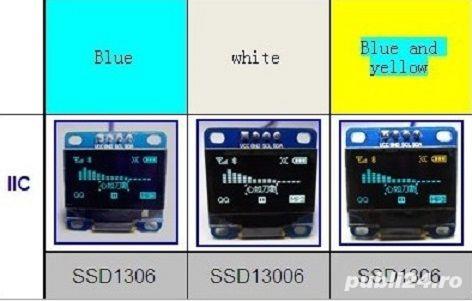

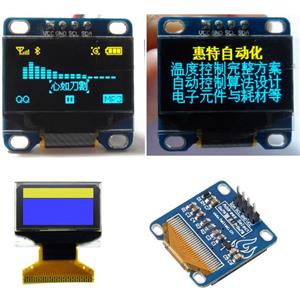

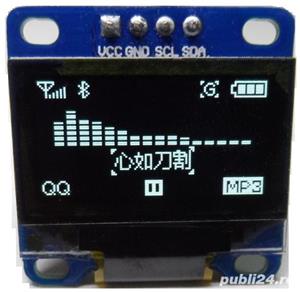

Lcd dispobibil in 3 culori: alb, albastru si albastru cu galben

Va rog sa specificati culoarea dorita.


Description:

Size: 0.96"
Resolution: 128X64
Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430 series, STIM32 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees

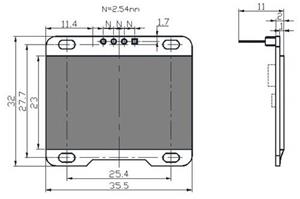

Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306 (l5d3w al3x)
Communication: IIC, only two I O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight, blue, yellow, white

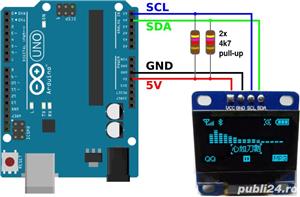

Interface:

4-pins
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data



Atentie!

In functie de lot, sint unele modele, unde din fabrica pinii "Vcc" si "Gnd" sint inversati, va rog sa fiti atenti la alimentarea lor, tineti cont de polaritate si tensiunea maxima de 5V.

Toate LCD-urile sint testate!

- - - - - - - - - - - - - - - - - - - - - - - - -
