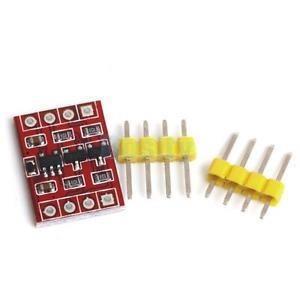

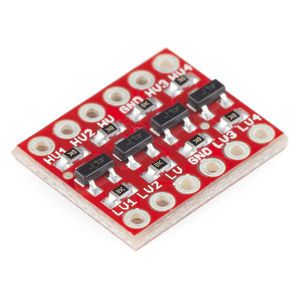

I2C Logic Level Convertor Bidirectional TTL 5V-3.3V

Modul Convertor Bidirectional 3.3V - 5V

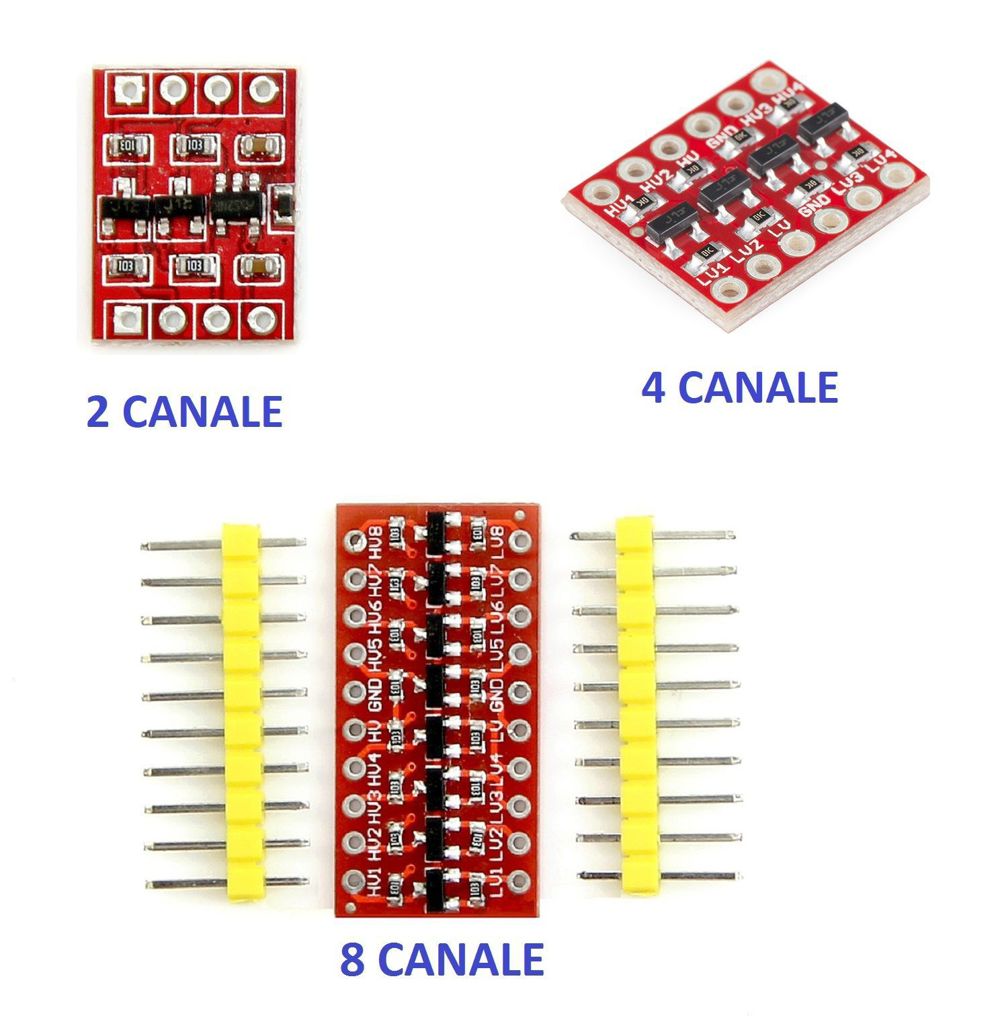

Model:

- 2 canale - 5 Lei
- 4 canale - 8 lei

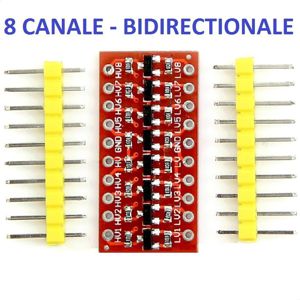

- 8 canale - 10 lei

Description

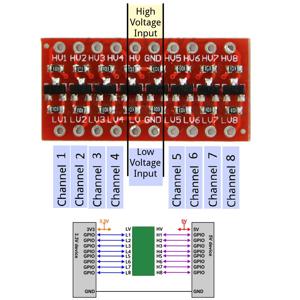

his level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side

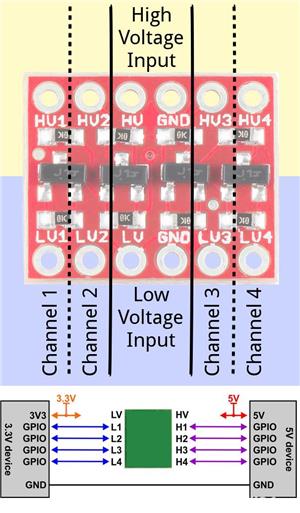

The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the 'HV' pin, low voltage (3.3V for example) to 'LV', and ground from the system to the 'GND' pin p5o5

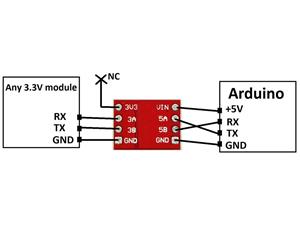

Compatible with 5-3V system al3x 0uc0 r3d
VIN connected 5V system power supply

- - - - - - - - - - - - - - - - - - - - - - - - -
