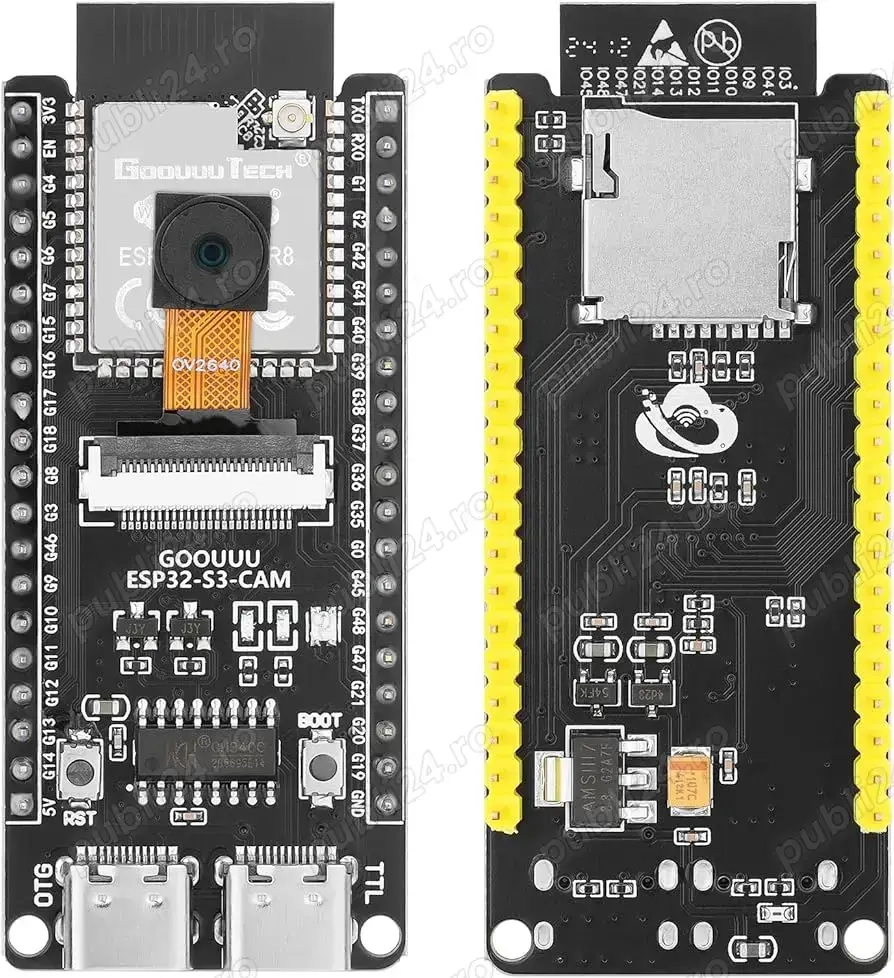

ESP32-S3 WROOM N16R8 WiFi Bluetooth Module OV2640 Camera

ESP32-S3 WROOM Flash 16MB, 8MB RAM, devkit c1, sd card, camera 2 megapixels (1600 x 1200)



Feature:

1. Excellent Wi-Fi performance: integrated IEEE 802.11b g n protocols to ensure high-speed and stable connection.
2. Advanced Bluetooth subsystem: supports Bluetooth 5 (LE) and Bluetooth Mesh to achieve long-distance communication.
3. Efficient data processing capability: built-in 32-bit LX7 dual-core processor, providing a balance of powerful computing performance and low power consumption.
4. Multiple wireless function integration: Wi-Fi and Bluetooth LE share the same antenna to optimize multi-tasking.
5. High temperature and stable operation: excellent performance, stable operation even in high temperature environment, suitable for various harsh working environments.


The OV2640 camera module has a resolution of 2 megapixels (1600 x 1200). It can also support lower resolutions for improved frame rates and provides various output formats like YUV422, RGB565, and JPEG.
Here's a more detailed breakdown:
Resolution: 1600 x 1200 pixels
Optical Size: 1 4-inch
Output Formats: YUV422, RGB565, JPEG
Frame Rate: Varies depending on the resolution and output format, with maximum rates of 15 fps@1600x1200, 30 fps@SVGA, and 60 fps@CIF
Field of View: 52 degrees (diagonal)


Product introduction:

ESP32-S3 integrates 2.4GHz Wi-Fi (802.11b g n) and supports 40MHz bandwidth; its low-power Bluetooth subsystem supports Bluetooth5 (LE) and BluetoothMesh, and can achieve long-distance communication through Coded PHY and broadcast extension. It also supports 2Mbps PHY to increase transmission speed and data throughput. ESP32-S3's Wi-Fi and BluetoothLE radio frequency performance are excellent and can work stably even at high temperatures. ipex


Performance parameters:
Support IEEE802.11b g n protocol
Support 20MHz and 40MHz bandwidth in 2.4GHz band
Support 1T1R mode, data rate up to 150Mbps
Wireless Multimedia (WMM)
Frame aggregation (TX RX A-MPDU, TX RX A-MSDU)
Immediate Block ACK
Fragmentation defragmentation
Low power Bluetooth (BluetoothLE): Bluetooth5, Bluetooth Mesh
High power mode (20dBm)
Support rate 125Kbps, 500Kbps, 1Mbps, 2Mbps
Wi-Fi and Bluetooth coexist, sharing the same antenna
32-bit LX7 dual-core processor, main frequency up to 240MHZ
PCB board size: 62.6mm*28.3mm e1t35 al3x
- - - - - - - - - - - - - - - - - - - - - - - - -
