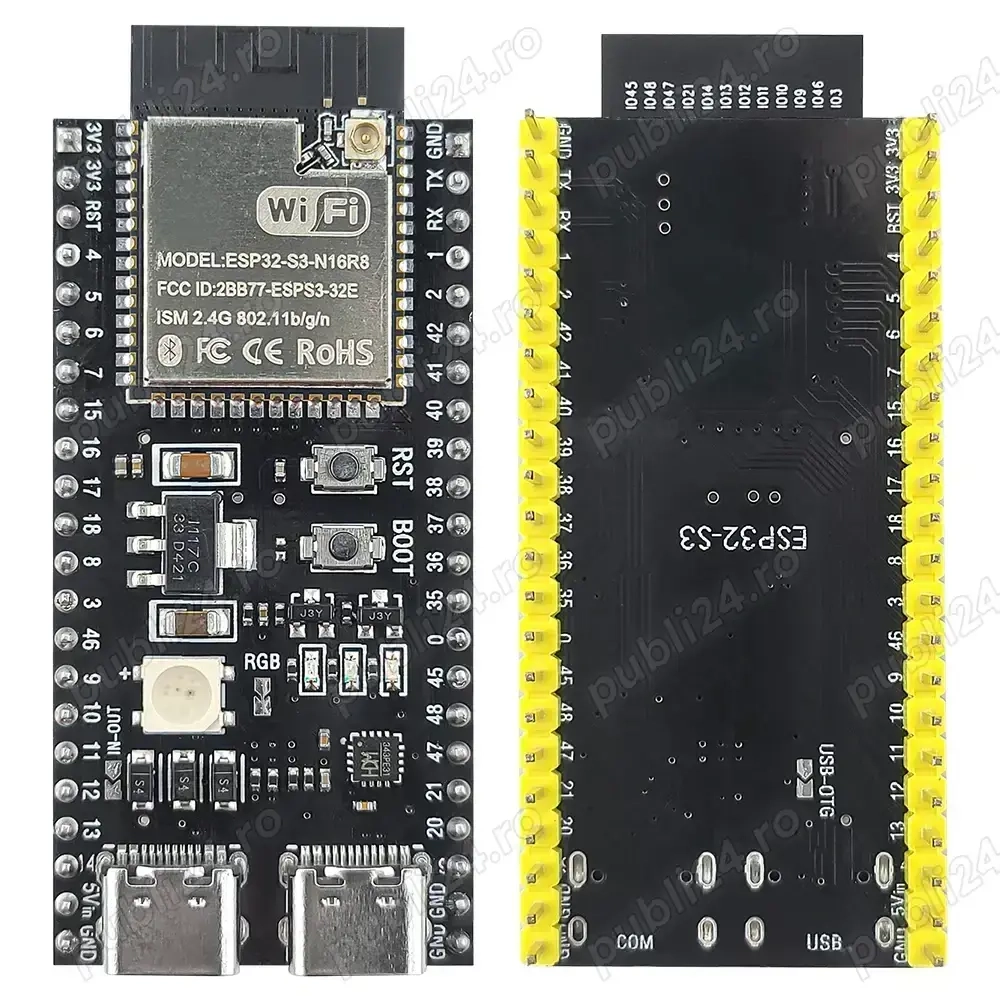

ESP32-S3 WROOM N16R8 Development Board WiFi Bluetooth

ESP32-S3 WROOM Flash 16MB, 8MB RAM devkit c1


Feature:

1. Excellent Wi-Fi performance: integrated IEEE 802.11b g n protocols to ensure high-speed and stable connection.
2. Advanced Bluetooth subsystem: supports Bluetooth 5 (LE) and Bluetooth Mesh to achieve long-distance communication.
3. Efficient data processing capability: built-in 32-bit LX7 dual-core processor, providing a balance of powerful computing performance and low power consumption.
4. Multiple wireless function integration: Wi-Fi and Bluetooth LE share the same antenna to optimize multi-tasking.
5. High temperature and stable operation: excellent performance, stable operation even in high temperature environment, suitable for various harsh working environments.



Product introduction:

ESP32-S3 integrates 2.4GHz Wi-Fi (802.11b g n) and supports 40MHz bandwidth; its low-power Bluetooth subsystem supports Bluetooth5 (LE) and BluetoothMesh, and can achieve long-distance communication through Coded PHY and broadcast extension. It also supports 2Mbps PHY to increase transmission speed and data throughput. ESP32-S3's Wi-Fi and BluetoothLE radio frequency performance are excellent and can work stably even at high temperatures. ipex


Performance parameters:
Support IEEE802.11b g n protocol
Support 20MHz and 40MHz bandwidth in 2.4GHz band
Support 1T1R mode, data rate up to 150Mbps
Wireless Multimedia (WMM)
Frame aggregation (TX RX A-MPDU, TX RX A-MSDU)
Immediate Block ACK
Fragmentation defragmentation
Low power Bluetooth (BluetoothLE): Bluetooth5, Bluetooth Mesh
High power mode (20dBm)
Support rate 125Kbps, 500Kbps, 1Mbps, 2Mbps
Wi-Fi and Bluetooth coexist, sharing the same antenna
32-bit LX7 dual-core processor, main frequency up to 240MHZ
PCB board size: 62.6mm*28.3mm e1t35 al3x
- - - - - - - - - - - - - - - - - - - - - - - - -
