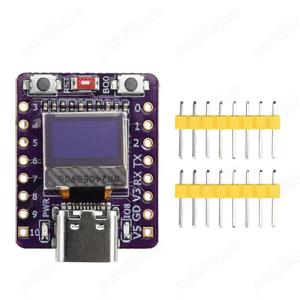

ESP32-C3, 0.42" OLED, 2.4GHz WiFi Bluetooth IOT

ESP32-C3 cu LCD de 0.42" - 72x40 pixels



Features:

- Great for quickly building IoT and Display projects around the Raspberry Pi Pico
- Integrated Microcontroller, Display, and USB Port for communication make it easy and convenient to complete projects rather than integrating them into individual components on your own
- SoC ESP32-C3FH4 SoC with RISC-V core @ 160 MHz, 4MB flash, 2.4GHz Wi-Fi, and Bluetooth 5 LE with Long-Range support
- 0.42-inch OLED Display
- USB Type-C port for power and programming
- Expansion Qwiic I2C connector

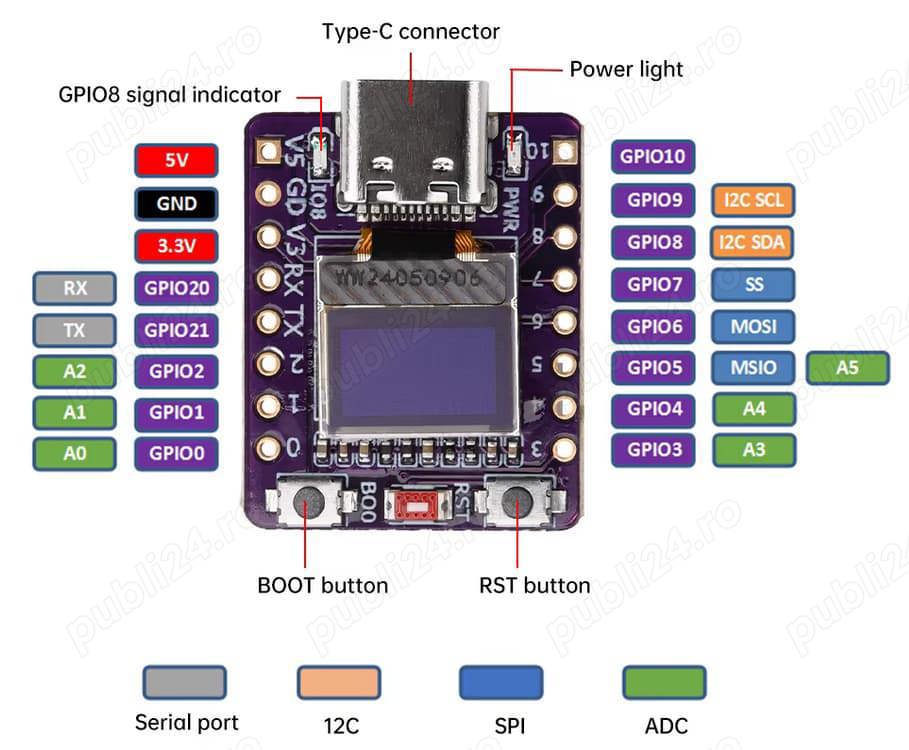

- 7-pin and 8-pin headers with up to 11x GPIOs, 2xSPI, 2x I2C, 4x ADC, 1x UART, 5V, 3.3V, VBAT, GND Misc Reset and Boot buttons
- Compatible with MicroPython, Arduino and ESP-IDF
- Reset button - CHIP_EN, great for restarting your program or entering the ROM bootloader
- Boot button - GPIO9, entering the ROM bootloader or for user input
- Power Supply 5V via USB-C port or Vin VBAT pin for battery input



Specifications:

Product: Development Board
Model: ESP32 C3
CPU : RISC-V single-core
Operating voltage: 3.3V
Power Supply: 5V via USB-C port or Vin VBAT pin for battery input
Display - 0.42 OLED
USB: Type-C
Flash:4MB
SRAM: 400KB
Wi-Fi:2.4 GHz
Antenna: Ceramic
Colour: Purple
Material: PCB
Size:23.5x18mm
