Dc-dc xl6009 sursa step-up 4 to 50v, in:3.8-35v reglabila ajustabila

Dc-dc xl6009 sursa step-up 4 to 50v



Specificatii:

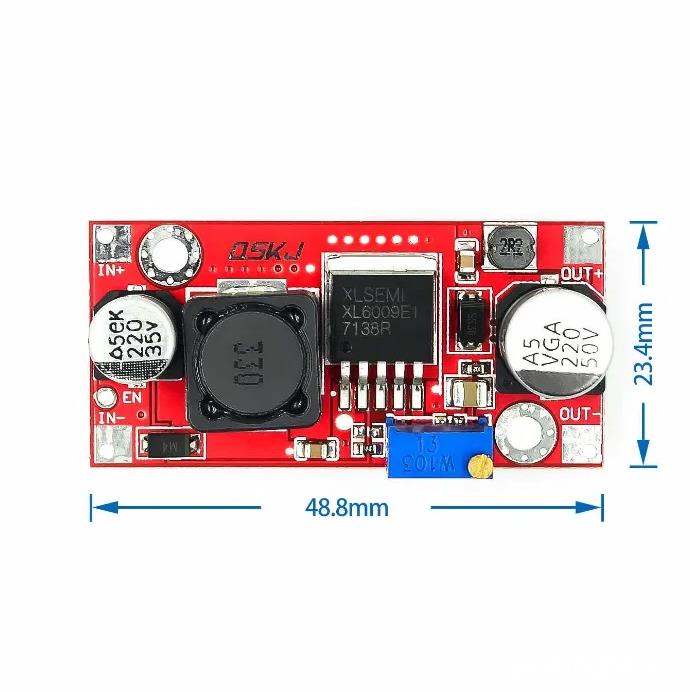

XL6009 DC-DC adjustable step-up power converter module, the step-up circuit board is a good efficiency non-isolated boost module.

Module Properties Non- isolated boost (BOOST)
Ectifier system:Not synchronous rectifier
Input range: 3.8V 35 V
Output range: 4V 50 V

Input current: 4A(maximum)
Transfer efficiency:94%(The highest) Normal efficiency for 85%
Switching frequency:400KHz
Output ripple:50mV

Load regulation: 0.5%
Voltage regulation: 0.5%
Working temperature: - 40 + 85
Size: Approx. 55.6 x 19.2mm 2.2x0.8inch


5y5sa y0p al3x ajustabil reglabil 24V, 12V, 30V, 36V, 48V

- - - - - - - - - - - - - - - - - - - - - - - - -

Livrare in Bucuresti si in tara:
