Linii de Derulare Bustean pentru Furnir_Veneer Peeling Line Plywood Machinery

Descriere

ANGELO CREMONA
VENEER PEELING LINE PLYWOOD MACHINERY
NEW, RECONDITIONED, USED FUNCTIONAL EQUIPMENT
RAW MATERIAL
ANGELO CREMONA
LINII DERULARE BUSTEAN MAȘINI PENTRU FURNIR (PLACAJ)
UTILAJE NOI,RECONDITIONATE,UTILIZATE FUNCTIONALE
MATERII PRIME
Wood species BEECH
Logs suitable for plywood production,of good quality and regular shape.
Logs heat-treated when necessary.
Log diameter min 180 mm, max 800 mm
320 mm nominal debarked
Block for peeling length min 1000 mm, max 2650 mm
VENEER SHEETS
Veneer sheets size green min 970 x 800 mm, max 2620 x 2800 mm
Veneer thickness range min 0,8 mm max 4,0 mm
Specii de lemn FAG
Bușteni potriviti pentru producția de furnir,de bună calitate și formă regulată.
Bușteni tratați termic atunci când este necesar.
Diametrul busteanului min180 mm, max 800 mm
320 mm nominale decojite
Lungimea blocului de derulare bustean min 1000 mm, max 2650 mm
Foi de furnir
Dimensiune foi de furnir verde min 970 x 800 mm, max 2620 x 2800 mm
Gama de grosime a furnirului min 0,8 mm, max 4,0 mm
VENEER PEELING LINE
1.1 RAMP FOR LOADING LOGS TO CENTERING DEVICE
REFURBISHED MACHINERY
1.2 X-Y ELECTRONIC CENTERING AND LOADING
GROUP Mod. CHT L -08-27
REFURBISHED MACHINERY
Complete with:
- log singularizing device
- laser system for log s shape reading for
optimized log centering
enabling:
- automatic knife carriage positioning

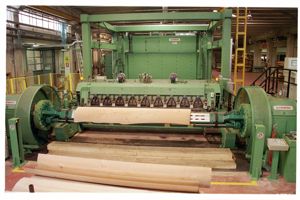

1.3 ELECTRONIC PEELING LATHE Mod. SFA 08-27
REFURBISHED MACHINERY
Machine complete with:
- Flat nose bar
- Backup-roll
- Automatic nose bar clamping
- Automatic knife clamping with pre-setting
- Double spindle system
- Digital pitch angle control
- Two side scoring devices
- Hydraulic oil tank with oil temperature control
- Main drive d.c. motor, power 100 kw with direct drive
Accessories included:
- 2 programmable thicknesses
- Nose bar air jet cleaning device
- Support and two extensions
- Footpath for control desk and stairs
1.4 DOUBLE TOP AND BOTTOM SPECIAL BELT CONVEYORS
BETWEEN LATHE AND ROTARY CLIPPER Mod. LD27
with pneumatic tipple for waste veneer discharging
NEW MACHINERY
1.5 ROTARY CLIPPER Mod. Rotax 27
REFURBISHED MACHINERY
Complete with:
- scanner and electronic control
- PC output system (software included)
1.6 AUTOMATIC 180 VENEER SHEETS REVERSAL SYSTEM Mod GF27
NEW MACHINERY
Page nr 5
Composed of
- SORTING STATION FOR VENEER RANDOMS Mod. SRA 27
- TRAY-DECK Systems with counterbelts
- Powered reversal
1.7 STATION FOR STRIPES
NEW MACHINERY
1.8 VACUUM STACKER FOR VENEER Mod. DEPO DT27
REFURBISHED MACHINERY
Including:
- 2 bins up to 800 mm veneer cutting width
- 3 bins up to 1800 mm veneer cutting width
- 1 couples up to 2800 mm veneer cutting witdth
4 HYDRAULIC SCISSOR LIFTS FOR THE STACKER of 2000x2800 mm abt
