Lcd nokia 5110 modul, shield, afisaj display,backlight alb 84X48 pixel
Specificații
Descriere

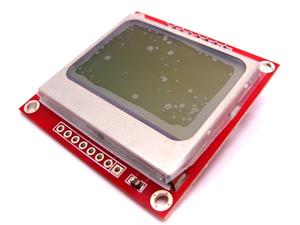

Lcd nokia 5110 modul - lumina alba
ATENTIE!
Inainte de montare in circuit verificati conexiunea pinilor cu denumirea corecta cu ce este in schema, niciodata cu ordinea de la 1-8 cu ce gasiti pe net, pentru ca sint multe modele.
Daca se respecta denumirea pinilor, chiar daca ordinea difera, LCD-ul functioneaza normal.

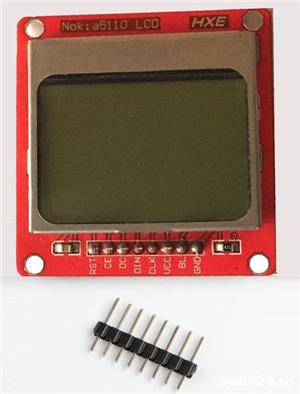

Mai jos este exact denumirea pinilor LCD-ului din acest anunt, cat se poate vedea si in poza
Description
1. LIGHT linked with GND, the backlight to be lit.
2. Need you to compress the screen and PCB tighter, might got loose after the delivery.
3 Use a 3.3V controller, otherwise the display could be quite vague
LCD5110 Module:
Power supply voltage:2.7V-3.3V
Data interface level:2.7-5V
Backlight power supply voltage:highest 3.3V
Module size:43.6mm x 43.1mm(width X height)
Installation diameter:2mm
Backlight:White
Document for Download:Data
1 RST - reset
2 CE - chip selection
3 DC - data/commands choice
4 DIN - serial data line
5 CLK - serial Clock Spee
6 3.3V - VCC
7 LIGHT - backlight control terminal (to GND)
8 GND - power negative
Features:
84 X 84 dot matrix LCD,can show 4 lines of characters
Use serial interface communicate with the master processor,the number of interface signal line reduced greatly, only 8 signal lines including power and GND. (l5d3w al3x)
Support different types of MCU,such as the SPI,MCS51 serial mode 0 of AVR.Transfer rate up to 4Mbps,can full speed write display data without waiting time.
Can use the conductive glue to connect the module with the printed board,without connecting cable.
The metal hooks on the module can fix the module on the printed board,which is very easy to install and replace.
LCD controller/driver chip has been bound to LCD chip,the volume of LCD is small
Low power supply,the working current in normal situation is lower than 200 A,and has power-down mode r3d
- - - - - - - - - - - - - - - - - - - - - - - - -
