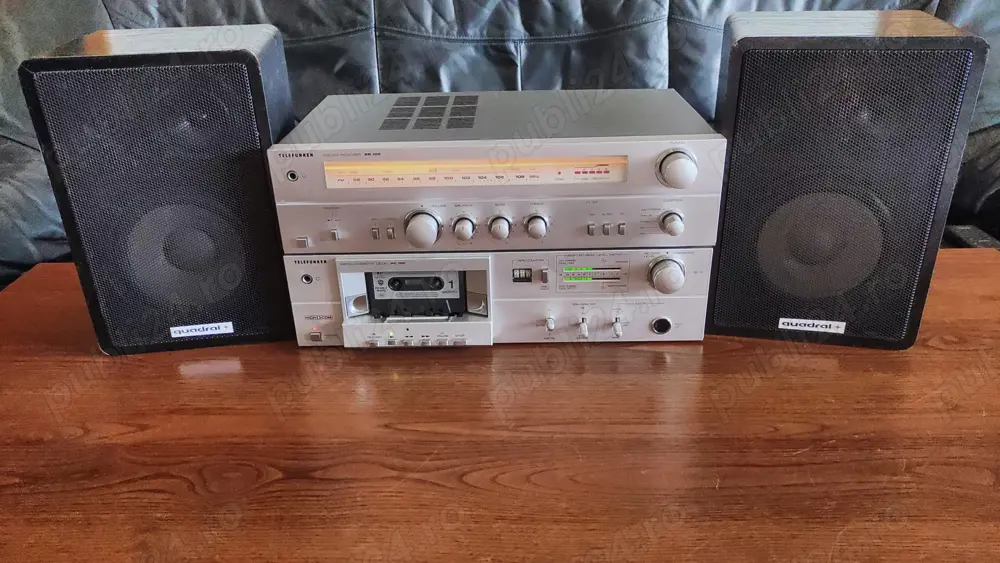

Vand Telefunken receiver RR100+ cass.deck RC-100 + boxe QUADRAL SM90III.

Vand Telefunken receiver RR100+ cass.deck RC-100 + boxe QUADRAL SM90III.
Toate aparatele sunt in stare foarte buna si sunt functionale..

TELEFUNKEN RECEIVER RR-100

Connections
Number of inputs:
Phono (2 mV 47 kOhm 32 dB) (DIN connector).
Aux (DIN connector)
Tuner (200 mV 470 kOhm 26 dB) (DIN connector)
Tape 200 mV 470 kOhm 26 dB) (DIN connector)

Antenna FM MW: 75, 300 Ohm 300 Ohm
Number of outputs:
Tape Rec 1, 2: 200 mV, 2.2 kOhm.
Tape Rec DIN: 40 mV, 80 kOhm
Headphones (6.3mm jack)
2 pairs of speakers

Technical Data

Amplifier
Continuous power (at distortion):
8 Ohm:
4 Ohm: 2x 30 W
Dynamic power:
8 Ohm:
4 Ohm: 2x 50 W
Total harmonic distortion: 0,1 %
Dämpfungsfaktor: 25 (bei 8 Ohm)
Frequenzgang:
Hochpegel: 10 - 40'000 Hz, 1 dB
Signalrauschabstand: 83 dB
Klangregelung:
Bass bei 100 Hz: 10 dB
Höhen bei 10 kHz: 10 dB
Loudness: ja, + 6 dB bei 70 Hz, + 3 dB bei 10 kHz
Low Filter:
High Filter:
Mute:

Tuner
Empfang: UKW, MW
Frequenzen:
UKW: 88 - 108 MHz
MW: 520 - 1610 KHz
Eingangsempfindlichkeit:
UKW: 0,9 V (26 dB)
MW: 10 V bei 600 kHz
Frequenzgang: 22 - 15'000 Hz
Signalrauschabstand:
Mono: >66 dB
Stereo: > 62 dB
Distortion factor:
Mono: 0.3 %
Stereo: 0.5
Channel separation: 40 dB (1 kHz)
Crosstalk attenuation: 40 dB (1 kHz)
Selectivity: 80 dB
Co-wave selection:
Spurious selection: 60 dB
Image frequency attenuation: 60 dB
IF attenuation: 60 dB
AM suppression: 60 dB
Dimensions (WxHxD): 435 x 110 x 285 mm
Weight: 7.5 kg

Special Features
LED field strength indicator
VHF muting
VHF AFC filter

TELEFUNKEN CASSETTTE RECORDER RC-100

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm s
Heads: 1 x record playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: High Com
Frequency Response: 30Hz to 15kHz (Cr02 tape)
Signal to Noise Ratio: 72dB (High Com)
Wow and Flutter: 0.2%
Total Harmonic Distortion: 3%
Input: 180mV (line), 0.4mV (mic)
Output: 1.0V (line)
Semiconductors: 9 x IC, 28 x transistors, 3 x diodes, 24 x LED
Dimensions: 435 x 111 x 250mm
Weight: 4.5kg

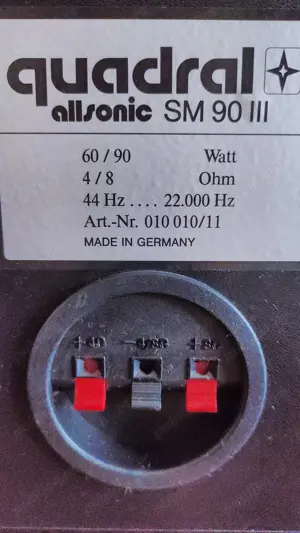

BOXE QUADRAL SM90 III 3 cai
Power: muzical nominal 90W 60W (au iesiri pe 4 Ohm si pe 8 Ohm)
Frequenzgang: 44-22.000 Hz
Dimensions: 320x210x190 mm
Weight: 4Kg buc

Pret pentru toata linia: 800 lei. Fara boxe: 500 lei.

ID anunț: 1743943401
