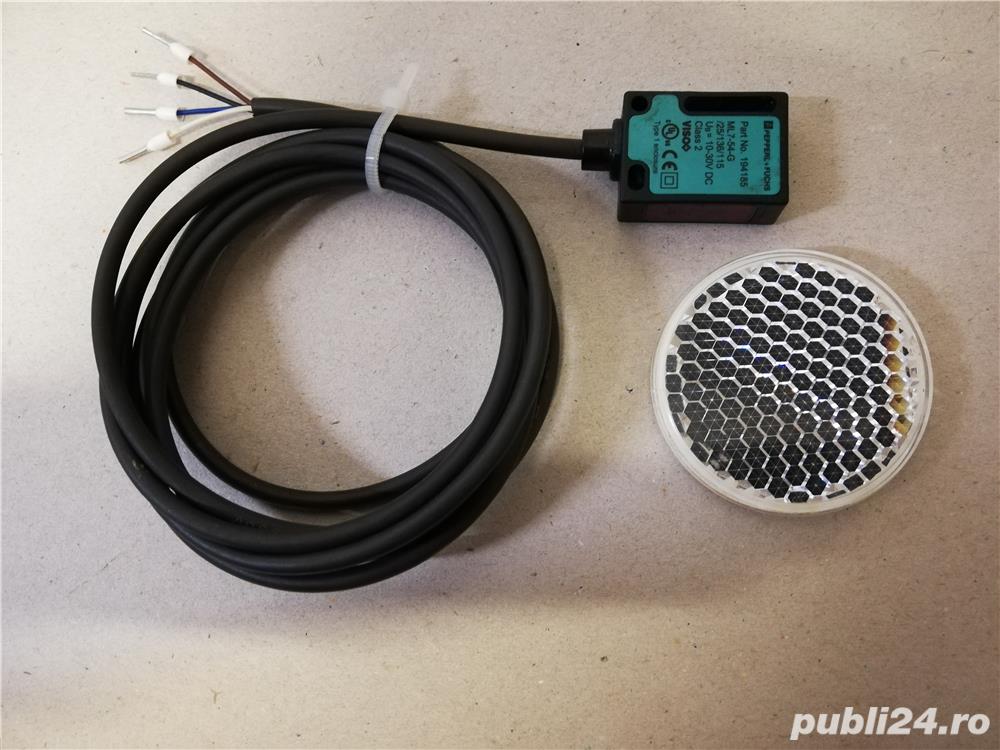

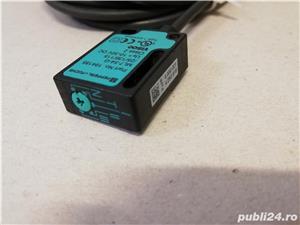

Retroreflective sensor NPN Pepperl+Fuchs ML7-54-G fotoelectric

Descriere

Este ca nou, a fost folosit doar de test la un proiect de automatizari.
Fotoreflector inclus.

Specificatii date de producator :

Operating voltage 10 ... 30 V DC
Ripple max. 10 %
No-load supply current < 20 mA at 24 V DC
Switching type dark on
Signal output 1 NPN output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA
Switching frequency 1 kHz
Response time 500 µs

Effective detection range 0 ... 3.5 m in TEACH mode 0 ... 5.7 m at switch position "N"
Reflector distance 0 ... 3.5 m in TEACH mode 0 ... 5.7 m at switch position "N"
Threshold detection range 7.6 m
Reference target H85-2 reflector
Light source LED
Light type modulated visible red light , 660 nm
Polarization filter yes
Angle deviation max. ± 1°
Diameter of the light spot approx. 40 mm at detection range 1 m
Angle of divergence 1.7 °
Ambient light limit 40000 Lux

PRET 200 Lei.
TELEFON contact 0774547833
