Wifi Video Intercom Access Control System Tuya Smart App Door Peep Camera Apartment and Home RFID

1 rainproof cover for Free AS a



Wifi Video Intercom Access Control System Tuya Smart App Door Peep



Camera For Apartment and Home RFID Access Control With Camera

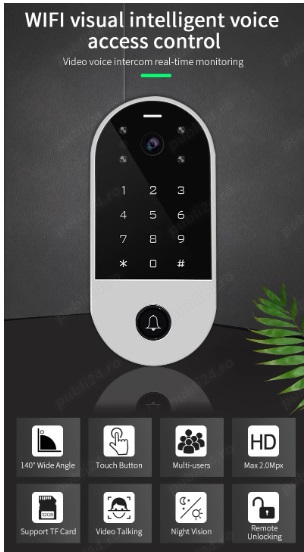

The device is Touch key Access Controller with WiFi-enabled Intercom. People can install the APP for intercom with their smart phone, and program the access controller by touch key. It is compatible with both iOS (7.0 above) and Android (4.3 above)

WIFI Video Intercom Access Control

Intercom

> 2.4G WiFi connection,

> Android and iOS available

> Full duplex voice intercom

> 2MP+wide angle camera and night vision

> Support TF card with unlimited capacity

> Support motion detection, playback, take picture video, unlock remotely

Access Control

> Touch key with one relay, 1000 users (988 common+2 panic+10 visitor)

> PIN Length: 4 6 digits

> EM card, Mifare card optional

> Wiegand 26 44 bits in put & output

> Can be used as Wiegand reader with LED & buzzer

> User data can be transferred

> 2 devices can be interlocked for 2 doors

Video Intercom

Network

2.4GWiFi connection

Pixel

2.0Mpx (1080P)

Visual Angle

Horizontal 140 wide angle

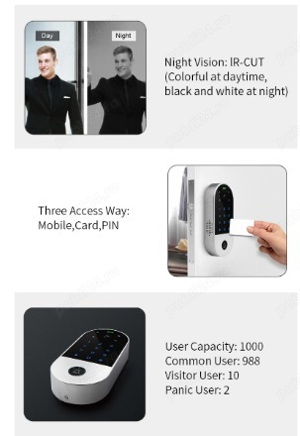

Night Vision

IR-CUT (Colorful at daytime, black and white at night)

Extended Memory

TF card with unlimited capacity

Intercom

Full duplex voice intercom

Other Functions

Motion detection; Playback; Take picture video; Unlock remotely

Access Control

User Capacity

1000

Common User

988

Visitor User

10

Panic User

2

PIN Length

4 6 digits

ProximityCard Reader

EM or (Mifare customizable)

Radio Technlogy

125khz default 13.56mhz customizable

Read Range

2 6cm

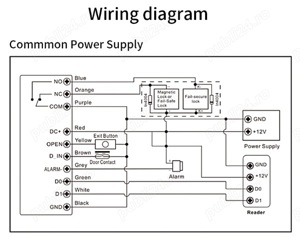

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input output

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0 99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Wiegand Interface

EM card version: Wiegand 26 44 bits input & output(Factory default: Wiegand 26bits)



Mifare card version:Wiegand 26 44 bits input & output(Factory default: Wiegand 34bits)

PIN Output

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)

Electric

Operating Voltage

DC 12V

Idle Current

150mA

Active Current

250mA

Environment

Indoor

Operating Temperature

-20 C 60 C (-4 F 140 F)

Operating Humidity

0%RH 86%RH

Physical

Zinc-Alloy

Color

Sliver & Black

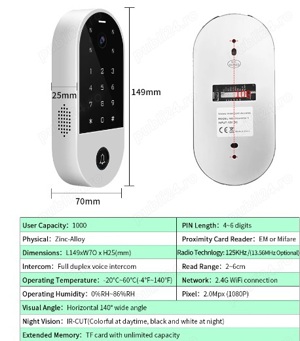

Dimensions

L149x W70x H25(mm)

Unit Weight

500g

Shipping Weight

550g

Specifications:
Material: Zinc-Alloy
Installation: Wall Mounting
Intercom Connection Type: Wireless
Smart Home Platform: Tuya and Smartlife APP
Camera Sensor Type: CMOS
Access Control Method: PIN, phone, password

Features:
|Apartment Complex Security System|Extra Security For Apartment Door|Axis Door Camera|

**Enhanced Security and Convenience**
The Wifi Video Intercom Access Control System is a cutting-edge solution for home and apartment security. Crafted from durable zinc-alloy, this system is designed to withstand the rigors of daily use while maintaining a sleek, modern aesthetic. The wireless intercom connection ensures easy installation, allowing you to mount the device on any wall without the need for complex wiring. With its compatibility with both iOS and Android devices, the system integrates seamlessly with your smartphone, providing a user-friendly interface through the Tuya and Smartlife APP.

**Advanced Access Control and Monitoring**
The system's access control method is versatile, offering PIN, phone, and password options for secure entry. It supports up to 1000 users, with 988 common users and 10 visitor users, ensuring that you can manage access for a large number of residents or guests. The system's camera sensor type is CMOS, providing high-quality video footage for clear identification and monitoring. The night vision feature ensures that you can see clearly even in low light conditions, enhancing your home's security.

**Smart Home Integration and Features**
The Wifi Video Intercom Access Control System is not just a security device; it's a smart home component that enhances your living experience. With its motion detection feature, you can receive alerts and playback footage to monitor your home's activity. The system also supports the addition of a TF card with unlimited capacity, allowing you to store and review footage as needed. The ability to remotely unlock doors adds an extra layer of convenience, making it an ideal solution for apartment complexes and homes alike. Whether you're looking to enhance your home's security or seeking
