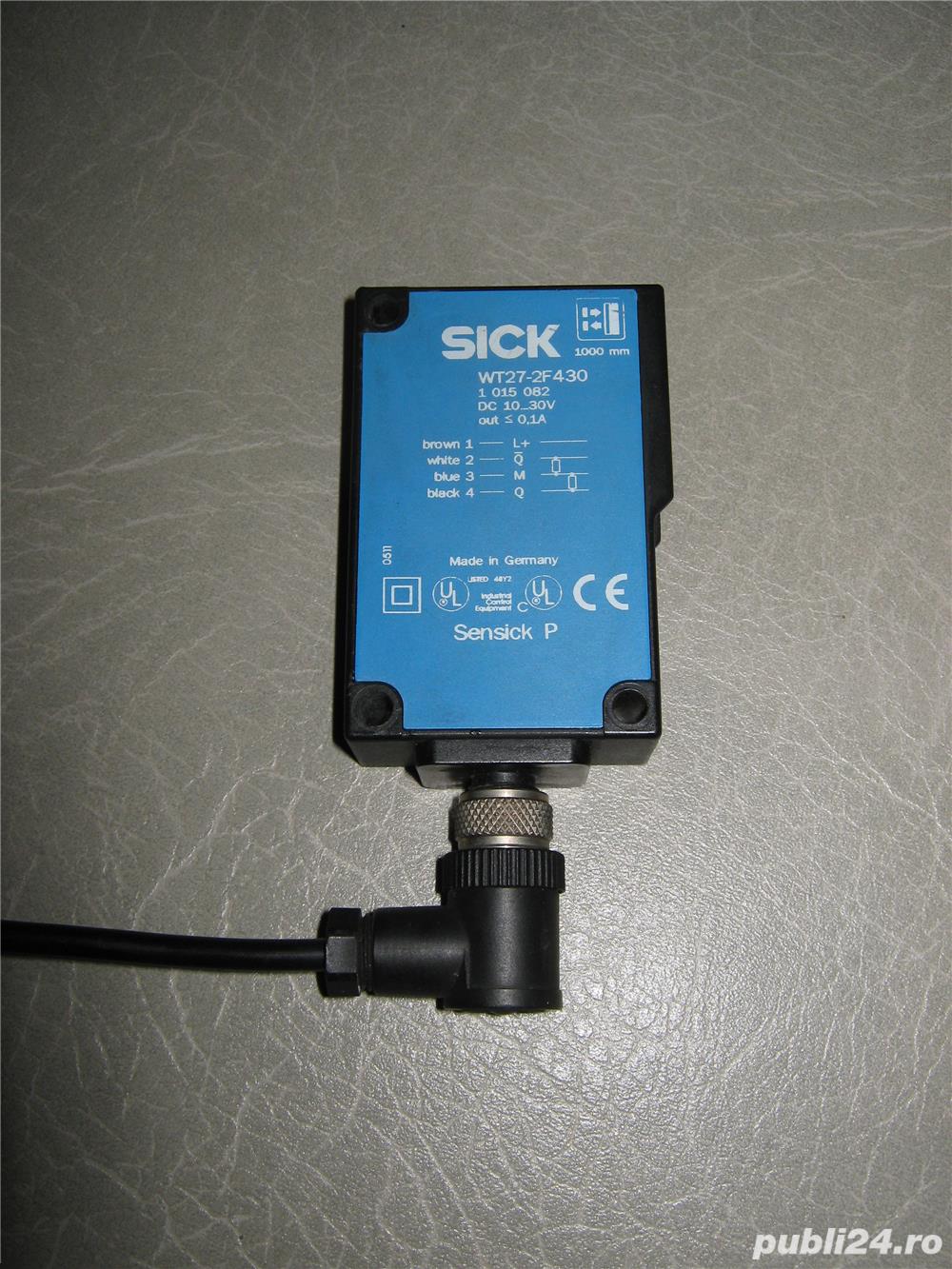

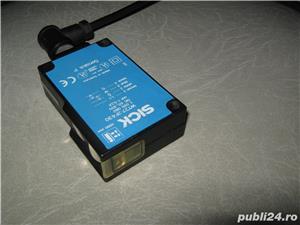

Sick WT27-2F430 1 015 082 Proximity photoelectric Sensor
Descriere
A fost folosit dar e in stare buna si perfect funcional, testat.
Include cablu 1,5m cu mufa / connector M12, 4-pin detasabila.
Mai jos am pus specificatiile exacte date de producator :
Sensor/detection principle : Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 24.6 mm x 80 mm x 53.5 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 800 mm.
Sensing range 100 mm ... 800 mm
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) O 2 mm (400 mm)
Wave length 650 nm
Laser class 2 (EN 60825-1), low power.
Eyes are normally protected by averting reaction and eyelid closing reflex.
Adjustment : Potentiometer.
Object with 90 % reflectance (referred to standard white, DIN 5033).
Supply voltage 10 V DC ... 30 V DC.
Power consumption ? 35 mA.
Output type PNP
Output function : Complementary.
Switching mode : Light/dark switching.
Output current Imax. ? 100 mA
Response time < 500 µs.
Switching frequency 1,000 Hz.
Connection type Male connector M12, 4-pin
Protection class : II. Weight : 100 g.
Housing material : ABS Plastic
Enclosure rating : IP 67.
Ambient operating temperature –10 °C ... +45 °C
Ambient storage temperature –10 °C ... +75 °C
Pret 300 lei. Telefon 0774547833 sau lsati mesaj aici pe pagina de anunturi.
La expediere plata transportului se achita in avans pt. siguranta comenzii. Publi24_18556974
