Osciloscop Digital portabil DSO150 cu sonde ecran colir

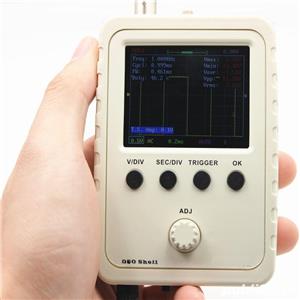

Osciloscop Digital portabil DSO150 bazat pe processor ARM Cortex-M3 cu ecran color de 2.4-inch TFT
pret 165ron cu sonde simple crocodil
pret 180ron osciloscop + alimentator 9v lab220v
pret 170 ron include si adaptor baterie 9v

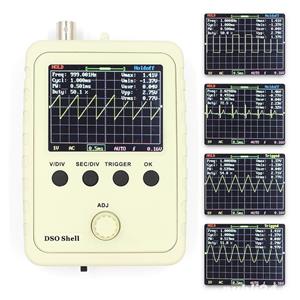

It's easy and reliable for circuit operation. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX. MIN.,AVG.,Peak-Peak,virtual values.

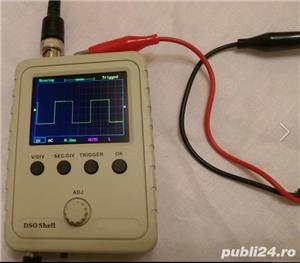

poate fi folosit pt sonda lambda la masini motociclete etc.. in electronica vizualizare semnale PWM
Features:
Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.
Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Come with instructions, easy to install and operate.
With Auto, Normal, Single trigger modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous waveform before trigger(negative delay).
Can freeze waveform display at any time(HOLD function).
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX. MIN. AVG. Peak-Peak virtual values.
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.

Specifications:
Maximum Real-time Sampling Rate: 1MSa s
Analog Bandwidth: 0-200KHz
Sensitivity Range: 5mV div-20mV div
Maximum Input Voltage: 50Vpk (1X probe)
Input Impedance: 1M ohms ,20pF
Accuracy: 12 Bits
Record Length: 1024 points

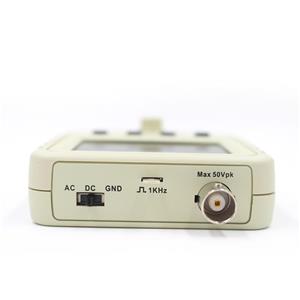

Coupling Modes: DC , AC , GND
Time Base Range: 500s per Div - 10us Div
Trigger Modes: Auto, Normal, and Single
Trigger Position: Center of Buffer
Supply Voltage: DC 9V(8-10V)
Current Consumption: 120mA 9V
Main Board Size: 94 * 65mm x 3.7 * 2.56in
Analog Board Size: 65 * 47mm x 2.56 * 1.85in
Screen Size: 52 * 40mm x 2 * 1.57in
Package Size: 14.5 * 10 * 3.7cm x 5. in
Package Weight: 179g
