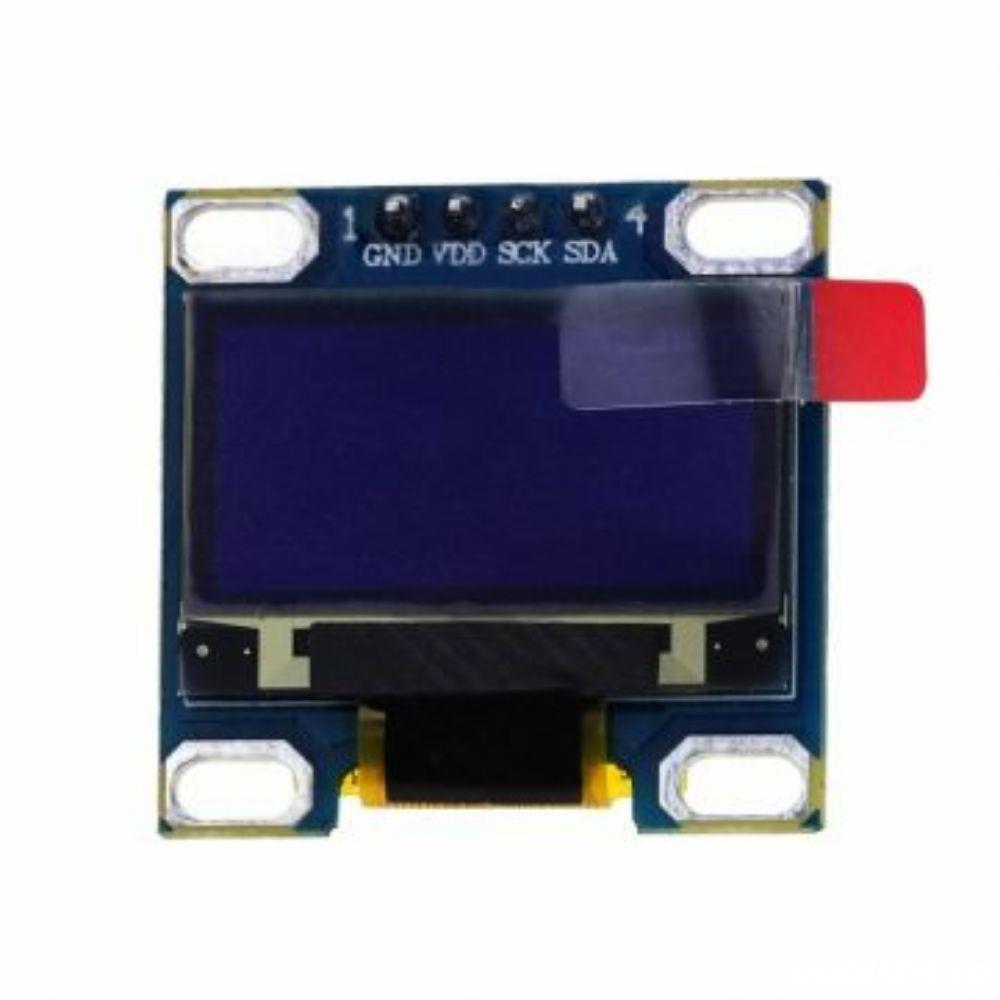

oled display 128X64 IIC I2c 0.96" 1.3" Inch pt. Arduino, Raspberry PI
Specificații
Descriere
oled display 128X64 IIC I2c 0.96 Inch pt. Arduino, Raspberry PI
OLED display model 1.3" = 38ron
Display OLED I2C 0.96" model SSD1306
Resolution: 128X64
Viewing angle: greater than 160 degrees
Supported platforms: for arduino, nodemcu esp8266 esp32, 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees

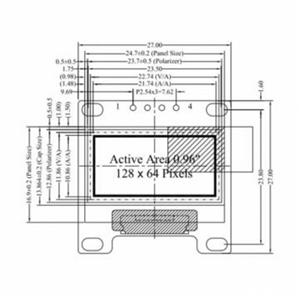

Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight
Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data Publi24_20308082
