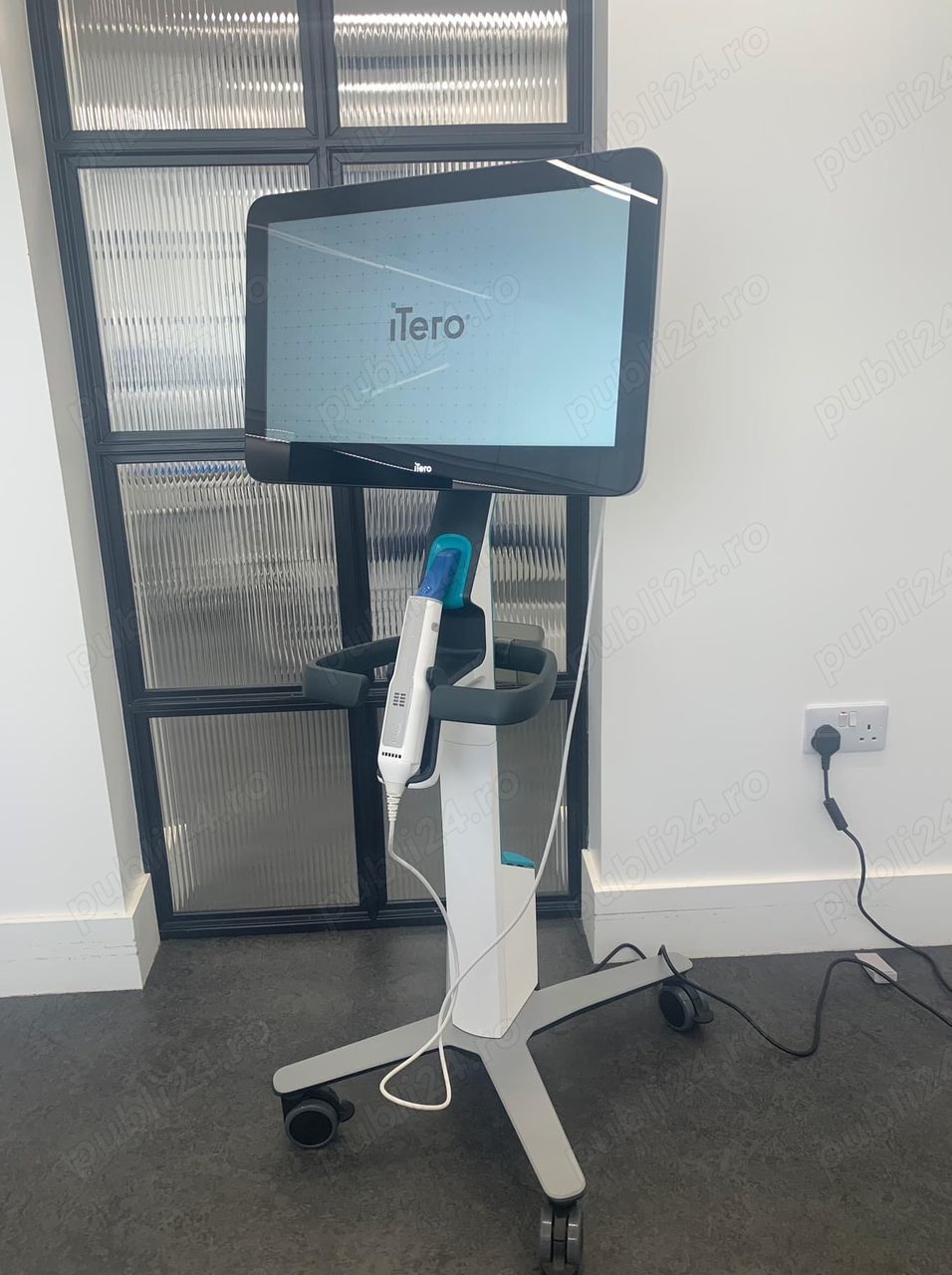

iTero Element 5D Plus Intraoral Dental Scanner

Monitor 15.6 Full HD (1920 1080) touch screen
Wand The wand emits red laser light (680nm Class 1), as well as white LED emissions and 850nm LED emissions.
Wireless LAN A LAN card provides local network communications with wireless connectivity
2.4GHz, 5GHZ
802.11ac
Security See the product security whitepaper in appendix C.
Operating Power 100-240 VAC- 50 60 Hz-250VA (max)
Operating Temperature 18 C to 26 C 64.4 F to 78.8 F
Storage Transportation
Temperature -5 C to 50 C 23 F to 122 F
Operating Pressure and Altitude Pressure: 520 mmHg to 771 mmHg (-69 kPa to -103 kPa)
Altitude: -400 feet to 10,000 feet
Storage Transportation Altitude Pressure: 430 mmHg to 760 mmHg ( 57 kPa to 101 kPa)
Altitude: 0 feet to 15,000 feet
Relative Humidity Operating: 40% to 70%
Storage: 30% to 90%
Dimensions iTero Full HD touch-screen computing unit:
Height: 275 mm ( 10.8 in)
Width: 419 mm ( 16.5 in)
Depth: 40.5mm ( 1.6 in)
Wand:
Length:346 mm (13.3 in)
Width:50 mm ( 2.0 in)
Depth: 68 mm ( 2.7 in)
Cable length Power cable: 1600 mm or 3000 mm
Wand cable: 1830 mm
Net Weight Computing unit with cradle and wand: 5.5 kg ( 12.0 lbs.)
System packed in trolley: 11 kg ( 24.0 lbs.)
Wand: 0.47 kg ( 1.0 lbs.) without the cable
CPU Specifications Intel Core i7
GPU Specifications Nvidia T1000
Battery Integrated battery for uninterrupted scanning and ease in office portability without plugging in or rebooting, providing:
At least 10 minutes of active continuous scanning
<2.5 hours for full recharge
Scanner and wand crosscontamination protection Single-use, disposable sleeves
Accessible ports USB types A and C
Scanning technology Parallel Confocal technology
Scanning properties Field of view: 12 x 12 mm
Depth of scan: 16 mm
No hovering required scanning can be done at a distance of 0 mm
No field calibration needed
Flexible scanning protocol (start anywhere, auto stitching)
Automated heating of the tip to avoid fogging of the lens
Scan time Full mouth can be completed in as little as 60 seconds.
AI Scan Assistant Auto-trimming tool: Provides a 3D model cleaned from excess scan material
Auto-margin marking tool: Provides automatic marking of the margin line on crown cases
Cloud storage Data can be stored and accessed on the web using cloud storage and the MyiTero web portal
