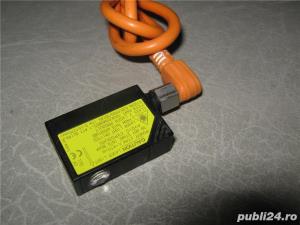

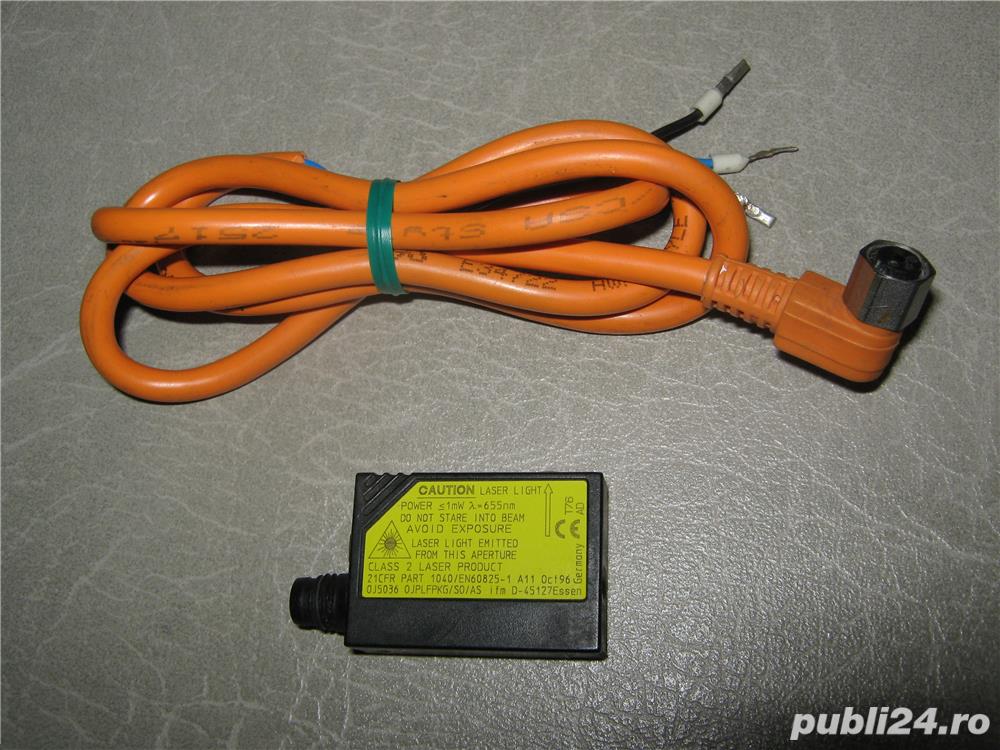

IFM laser Photoelectric sensors OJ5036 OJPLFPKG/SO/AS
Descriere
Produsul este folosit dar e perfect funcional, include cablul cu mufa de
conectare, nu include suportul de prindere. Recent adus/primit din Germania.
A fost verificat si testat inainte.
Specificatii tehnice producator :
Retro-reflective sensor Laser light CLASS 1 LASER PRODUCT.
Electrical design : DC PNP.
Operating voltage [V] : 10...30 DC.
Current consumption [mA] : < 15.
Type of light : Red light 650 nm.
Life expectancy typ. [h]: 50000.
Protection class: III
Reverse polarity protection : yes.
Output function : light-on / dark-on, programmable.
Voltage drop [V] : < 2.5.
Current rating [mA] : 200.
Short-circuit protection : pulsed.
Overload protection : yes.
Switching frequency [Hz] : 2000.
Sensing range [m] :8 (Prismatic reflector 50 x 50 mm (E20722)).
Smallest detectable object [mm] : O 2.5mm (0.1m) O 4mm (2.5m) O 8mm (5m).
Light spot diameter [mm] : < 12 ( at maximum range ).
Ambient temperature [°C] : -10...60.
Protection : IP 67.
Housing materials : ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS.
Lens material : glass.
Weight [kg] : 0.045.
Displays / operating elements :
Output status indication LED : yellow.
Operation LED : green.
Function display LED : Red.
Connection : M8 connector.
Pret 50 Euro sau 220 lei.(pe Ebay se da la 180 USD fara tranport)
Preferabil predare personala, nu trimit cu ramburs.
Telefon 0774547833 sau lsati mesaj aici pe pagina de anunturi.
Expediere doar cu plata in avans. Publi24_17542782
