Dumploader versiunea A30 standard - 100 Lei (cunoscut si sub alta denumire A30-U01)
Dumploader versiunea A30 - cu timer - 110 Lei (cunoscut si sub alta denumire A30-U03)
Optional gratuit se poate moda (modifica) oricare model sa poate masura tensiunea pana la 1000V dar:
Avertisment ! Produsul solutia prezentata prezinta pericol de electrocutare mortala. Luati toate masurile de precautie cand se lucreza cu tensiune inalta! Raspunderea e a utilizatorului cand se foloseste in afara gamei de lucru max 100V! - - - - - - - - - -
Pe scurt este un "voltmetru" programabil in plaja 6-80V DC, nu e sursa in comutatie !

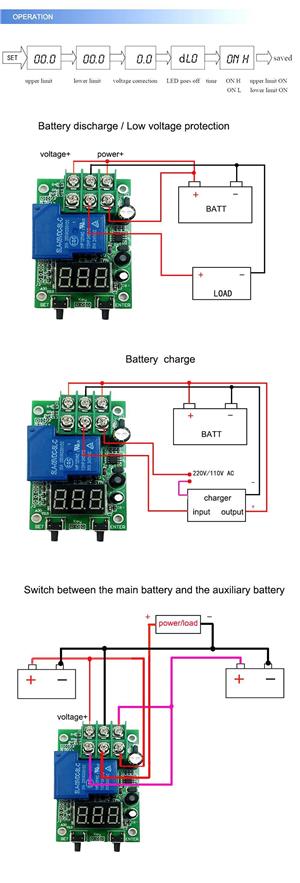

Va rog citit cu atentie detaliile, explicatiile si specificati ce model vreti. Vedeti toate pozele cum se fac conexiunile la placa in diferite configuratii daca nu se respecta nu se ofera garantie!
Acest controler monitorizeaza tensiunea si se poate comporta ca un comutator ce detecteaza supra tensiune sau sub tensiune a unei baterii. Se poate comporta si ca un dump loader si poate comanda o sarcina (consumator) atat in DC cat si in AC
Acest controler e disponibil in 2 versiuni A30 - U01 standard si A30 - U03 care are si timer incorporat cat si optional gratuit versiunea modata pana 1000VDC - - - - - - - - - -
Prezentare video:
youtu.be bKcPYEq7AWc - - - - - - - - - -

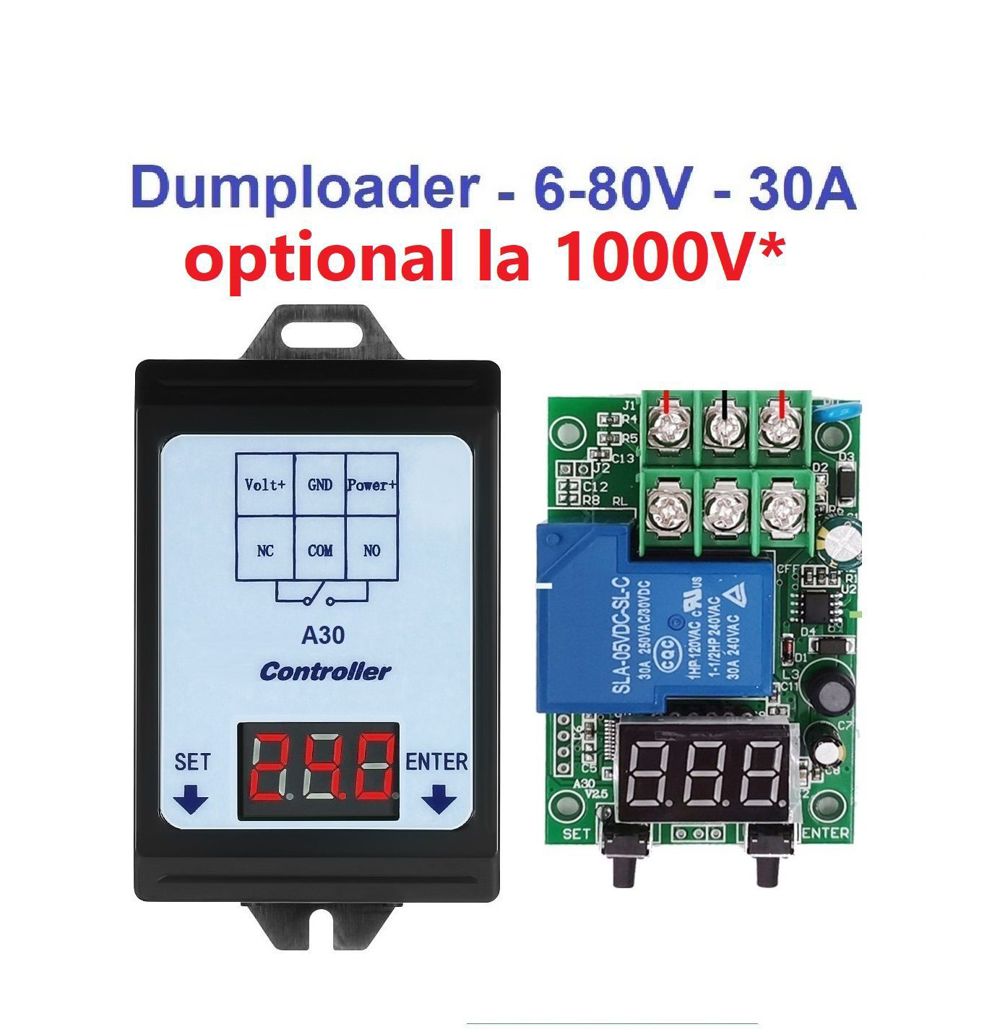

Controler A30;
Features: Model: Standard A30-U01 and A30-U3 with timer Digital display DC voltage detection, control the relay output. DC 6 80V relay interface board with 2 buttons for easy operation. With clear LED display, convenient to check the value. Adjustable Voltage Detection Range: DC 0 99.9V. When the measured voltage is lower than the lower limit or higher than upper limit value, the relay works. Can be used for voltage detection switch, battery over under voltage protector or discharge meter. Comes with a cover for protection.

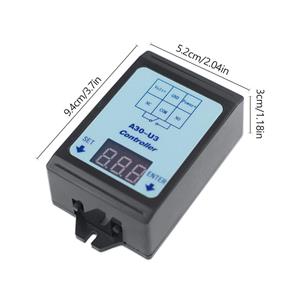

Specifications: Material: PCB + ABS Working Voltage: DC 6 80V Voltage Detection Range: DC 0 99.9V Error: + -0.1V Working Current: 8mA 24V(relay open, LED displays OFF about 4mA 24V); 58mA 24V(relay closed) A set of transformations(normally open normally close, NO NC) Contact Load: NO: 30A 250V AC or 30A 30V DC; NC :20A 250V AC or 20A 30V DC Attention: Because high voltage DC electric arc damages relay contact, so the electric load above DC60V load current is less than 10A. Contact Resistance: 100m (1A 6VDC) Mechanical Durability: 10 millions Electricity durability: >100,000 (20A 250VAC) Operating Temperature: -40 85 C Item Size: 9.4 * 5.2 * 3cm 3.7 * 2.05 * 1.18in Package Size: 9.5 * 6 * 3cm 3.74 * 2.36 * 1.18in Package Weight: 85g 3oz
