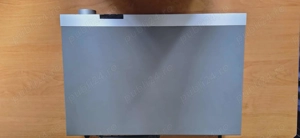

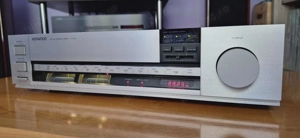

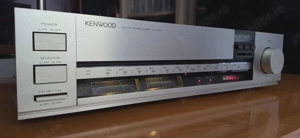

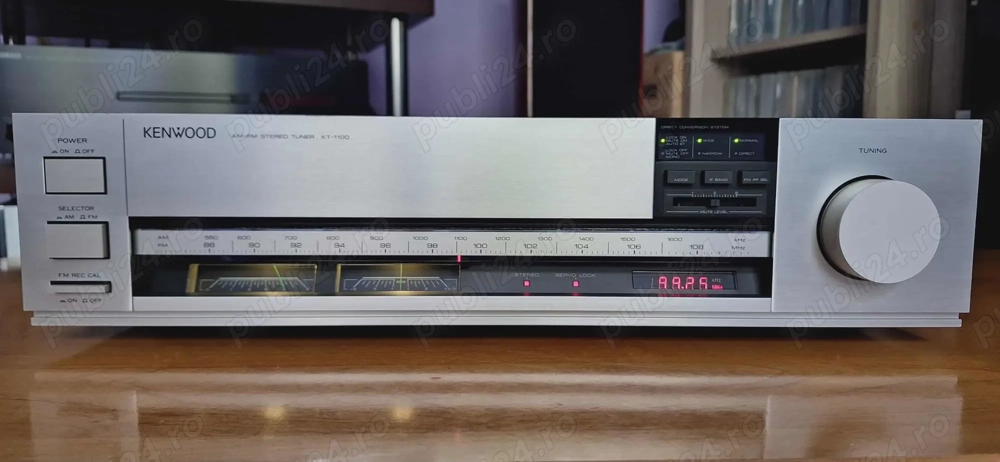

Tuner kenwood KT-1100

- Stare Perfecta de Functionare,sunet f f bun,totul original la interior,fara reparatii -

Tuner Kenwood KT-1100

General

Manufacturer: Trio Kenwood Corporation
Model: KT-1100
Type: Tuner
Years of manufacture: 1983 - 1985
Made in: Japan
Color: Black, Silver
Remote control: No
Power consumption: 17 W
Dimensions (WxHxD): 440 x 111 x 337 mm
Weight: 5.7 kg
Original price approx.: 1'100 DM

Connections

Number of outputs: 3 Cinch
1x fixed,
1x adjustable,
1x multipath (for oscilloscope)
Number of inputs: 2
75Ohm antenna (FM),
300Ohm antenna (AM) also for supplied loop antenna

Technical data

reception: FM AM
receivable frequencies:
FM: 87.5MHz -108MHz (FM).
AM: 531kHz - 1611kHz (MW)

FM
Frequency response: 15Hz - 15kHz ( 0.5 dB)
Input sensitivity

Mono: 0.7 V (S N 26dB, 40kHz deviation)
Stereo: 25.0 V (S N 46dB, 46kHz deviation)
Input sensitivity at 50dB (IHF) mono: 1.8 V Distortion factor

Mono: 0.04% (1kHz, 40kHz deviation)
Stereo: 0.08% (1kHz, 46kHz deviation)
Signal-to-noise ratio: mono stereo: 85 80dB (rated according to IEC-A) Stereo channel separation: Stereo: 55dB, 1kHz (46kHz deviation, 1mV)

Selectivity: 75dB (300kHz, 20dB)
Co-wave selection: 0.8dB
spurious selection: 120dB

Image frequency attenuation: 90dB
IF attenuation: 110dB

AM
Input sensitivity: 9 V (S N 20dB) or 180 V m
Signal-to-noise ratio: 55dB (at 1mV)
Image frequency attenuation: 70dB
Distortion factor 0.2%

Selectivity 35dB 70dB (Wide Narrow)
Output level FM (1kHz, 100% modulation)
at the non-adjustable connection 0.75V 2.2kOhm
at the adjustable connection 0 ... 1.5V 2.2kOhm

Special Features

5-turn analog tuner for FM
3-speed analog tuner for AM
2 intermediate frequencies for FM (10.7MHz and 1.9653 MHz), double super
Pulse Count FM demodulator
Sample&Hold stereo decoder
switchable intermediate frequency bandwidth (Wide Narrow) for FM and AM
switchable FM preamplifier stage
display instruments for signal strength and channel center for FM and AM
digital frequency counter in addition to analogue scale
Measuring tone generator for recording output setting
detachable loop antenna for AM
