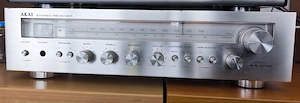

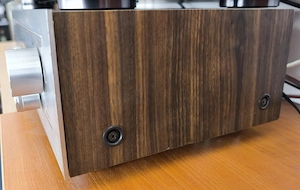

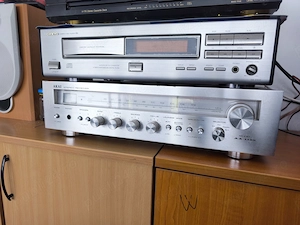

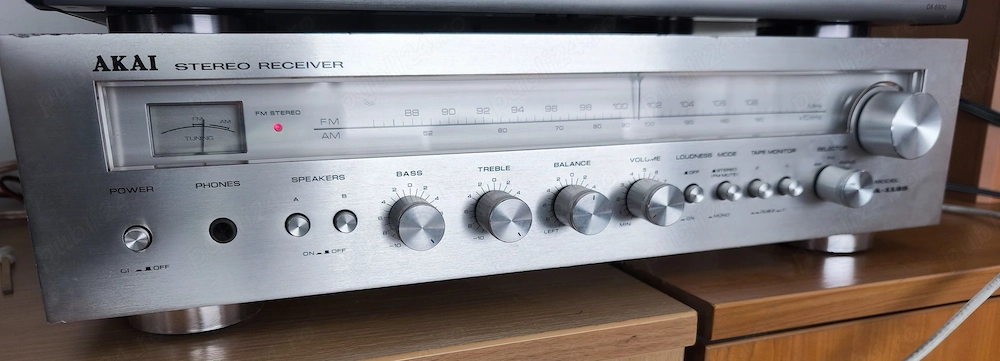

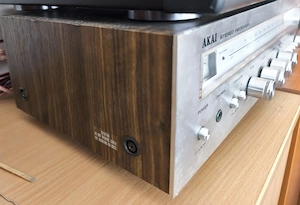

Amplituner AKAI AA1125

Amplituner AKAI AA1125 se afla in stare buna de funcționare cât și estetică.
Model: AA-1125
Year built: circa 1979
Made in: Japan
Color: black, silver
Remote control: no
Power consumption: 100 W
Dimensions: 480 x 123 x 268 mm (WxHxD)
Weight: 6.8 kg
Original price approx.: 598 DM

Connections

Number of inputs:
1x Phono: 3 mV 47 kOhm
2x Tape In, Aux, DIN: 150 mV 100 kOhm

Antenna FM (75 300 Ohm) MW.
Number of outputs:
Tape Out: 150 mV 3 kOhm
DIN: 30 mV 30 kOhm

Headphones (6.3 mm jack, front)
2 pairs of loudspeakers

Technical Data

Amplifier

Continuous power (20-20,000 Hz, IHF).
8 Ohm: 2x 25 W 4 Ohm: 2x 28 W

Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: < 0.3%
Attenuation factor:
Frequency Response: 15 - 40,000 Hz (-3 dB).
Signal-to-noise ratio: (noise voltage aa.)
Phono: 75 dB Tape, Aux: 90 dB

Stereo channel separation:
Tone control:
Bass: 9 dB at 100 Hz
Treble: 9 dB at 10 kHz

Loudness: +5 +10 dB (treble bass)
High Filter: no
Low Filter (Subsonic): no
Mute:
Direct Line-Straight:

Tuner

Reception: FM, MW
Frequencies:
FM: 88 - 108 MHz
MW: 520 - 1,605 kHz
Frequency response:
Input sensitivity:
FM: 1.2 V
MW: 180 V (Int.) 10 V (Ext.) Distortion factor:

FM: 0.3% (Mono), 0.6% (Stereo).
Signal-to-noise ratio:

FM: 60 dB
MW: 45 dB

Channel separation: 40 dB
Selectivity:
Common wave selection:
FM: 1.3 dB
Spurious wave selection:
FM: 70 dB
MW: 30 dB

Mirror frequency attenuation:
FM: 65 dB
MW: 55 dB
IF attenuation:
FM: 90 dB
MW: 45 dB
AM suppression: 50 dB
Output level:
RDS: no
Station memory: no
