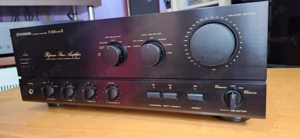

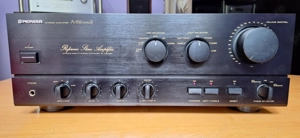

Amplificator Pioneer A-616 MK2

- Stare Perfecta de Functionare,sunet f f bun,totul original la interior,fara reparatii -

Pioneer A-616 MK II

General

Manufacturer: Pioneer
Model: A-616 MKII
Type: Integrated amplifier
Years of manufacture: 1988 - 1989
Made in: Japan
Colors: Silver, Black
Remote control: no
Power consumption: 650 W
Dimensions: 420 x 162 x 435 mm (WxHxD)
Weight: 14 kg
Original price approx.: 900 DM

Connections

Number of inputs:
Phono (MM MC selectable): 2.5 mV 50 kOhm (MM), 0.2 mV 100 kOhm (MC).
CD, Tuner, Line, 3x Tape In: 150 mV 50 kOhm.
Number of outputs:
3x Tape Out: 150 mV 2.2 kOhm.
Headphones (6.3 mm jack, front)
2 pairs of loudspeakers

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 80 W (0.005%)
4 Ohm: 2x 120 W (0.008%)
2 Ohm: 2x 160 W (0.008%)
Dynamic power
8 Ohm: 2x 120 W
4 Ohm: 2x 150 W
2 Ohm: 2x 200 W
Total harmonic distortion: 0. Hz, 70 W, 8 Ohm)
Attenuation factor: 2 hm, 1 kHz 20-20,000 Hz)
Frequency response:
Phono MM: 20 - 20,000 Hz ( 0.2 dB).
Phono MC: 20 - 20,000 Hz ( 0.3 dB)

High level: 1 - 150,000 Hz (+0 -3 dB)
Signal-to-noise ratio:
IHF (short-circuited, A-weighted).
Phono MM MC: 95 dB 77 dB
High level: 108 dB
DIN (continuous power 50 mW)
Phono MM: 74 dB 65 dB
High level: 92 dB 66 dB
Stereo channel separation:
Tone control:
Bass: yes, 8 dB (100 Hz)
Treble: yes, 8 dB (10 kHz)

Loudness: yes, +5 dB (100 Hz), +3 dB (10 kHz) (at -40 dB volume)
High Filter: no
Low Filter (Subsonic): yes, 7 Hz (-12 dB octave)
Mute: no
Direct Line-Straight: yes
