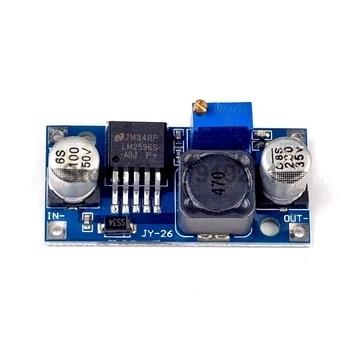

LM2596 LM2596S DC-DC Adjustable Step-down Power Supply Module

Descriere

Atentie, am foarte multe produse, module, shield-uri, pentru proiecte, licente, decat cele afisate, va rog sa-mi solicitati lista completa

LM2596 LM2596S DC-DC Adjustable Step-down Power Supply Module

DC-DC Step Down Converter Module LM2596 DC 4.0~40 to 1.3-37V Adjustable Voltage Regulator Specifications:

Module property:Non-isolation buck

Rectification mode:Non-synchronous rectifier

Input voltage:3V-40V

Output voltage:1.3V-35V

Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)

Conversion efficiency:92%( highest )

Switching frequency:65KHz

Output ripple:30mV( maximum )

Load regulation:±0.5%

Voltage regulation:± 2.5%

Work temperature:-Minus 40 degrees - 85 degrees
