Infrared Barrier Obstacle Senzor, roboti, cnc, arduino, obstacole

5 RON
Valabil din 23.12.2019 08:37:21
Specificatii
Subcategoria diverse
Descriere Electronice

Atentie, am foarte multe produse, module, shield-uri, pentru proiecte, licente, decat cele afisate, va rog sa-mi solicitati lista completa

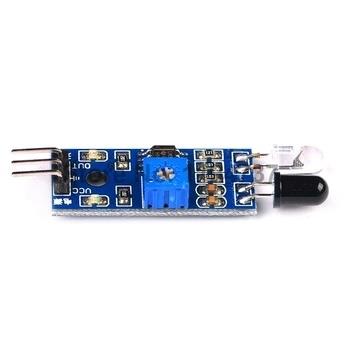

Infrared Barrier Module Obstacle Avoidance Sensors Module
The light sensor module adaptable to the environment , having a pair of infrared transmitter and receiver, launch tube a certain frequency, infrared , when the obstacle detection direction ( reflection surface ) , the infrared receiver is reflected back by the receiver tube , after processing through the comparator circuit , the green indicator light will illuminate while the signal output interface output digital signal ( a low-level signal ) can be adjusted via potentiometer knob detection distance , the effective distance range 2 ~ 80cm, working voltage is 3.3V- 5V. The detection range of the sensor can be adjusted via potentiometer , with little interference , easy to assemble , easy to use , can be widely used in robot obstacle avoidance , obstacle avoidance trolley line counts , and black and white line tracking , and many other occasions .

Two modules Parameter Description

When the module detects an obstacle in front of the signal , the circuit board green indicator light levels while continuing output low signal OUT port , the module detects the distance 2 ~ 60cm, detection angle 35 °, the distance can detect potential control to adjust, adjust potentiometer clockwise , the detection distance increases ; counterclockwise adjustment potentiometer, detection distance decreases.

2, the sensor active infrared reflection survey , so the target reflectivity and shape of the detection range of the key. The minimum detection distance which black and white max ; small area of the object distance is small , a large area from the Grand .

3 , the sensor module output port OUT can be directly connected to the microcontroller IO port , but also can directly drive a 5V relay ; Connection : VCC-VCC; GND-GND; OUT-IO

4 , the comparator using LM393, job stability ;

5 , can be 3-5V DC power supply for the module . When the power is turned on, the red power indicator light ;

6, with 3mm screw holes for easy mounting, installation ;

7 , the circuit board size : 3.1CM * 1.5CM

8 , each module is shipped already comparing the threshold voltage adjustable via potentiometer good, non-exceptional circumstances , do not arbitrarily adjust the potentiometer.

Three module interface specification ( 3-wire )

1 VCC external 3.3V-5V voltage ( 5v microcontroller and can be directly connected to 3.3v MCU )

External GND 2 GND

3 OUT small board digital output interfaces ( 0 and 1 )
